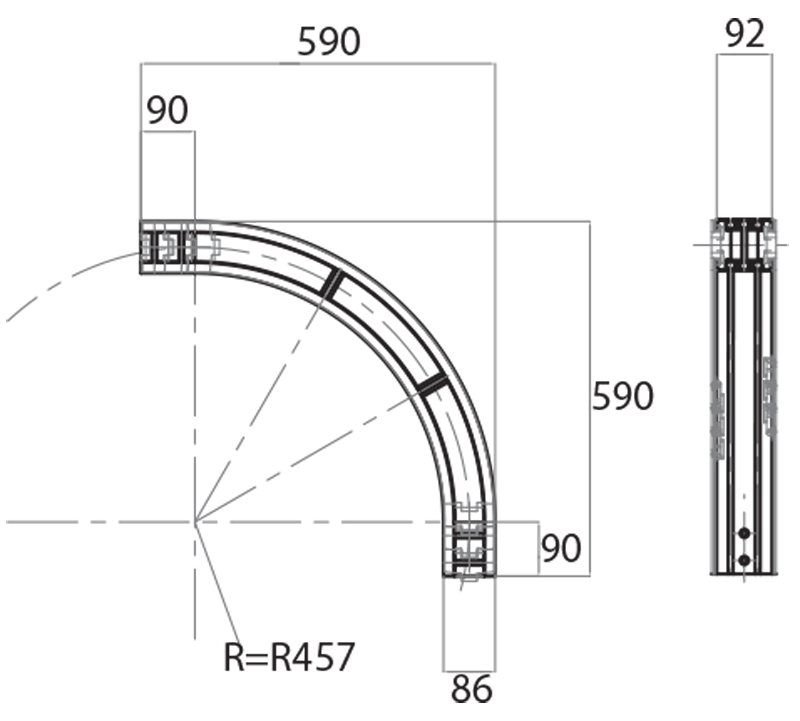

Return 90° sliding curve average radius 457 mm

cod. AC645086

Return 90° sliding curve average radius 457 mm

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Channel dimension (mm) Chain width (mm) Medium radius (mm) Angle
AC645086 86 82,5 457 90°
