Projects and Realizations

View our latest creations

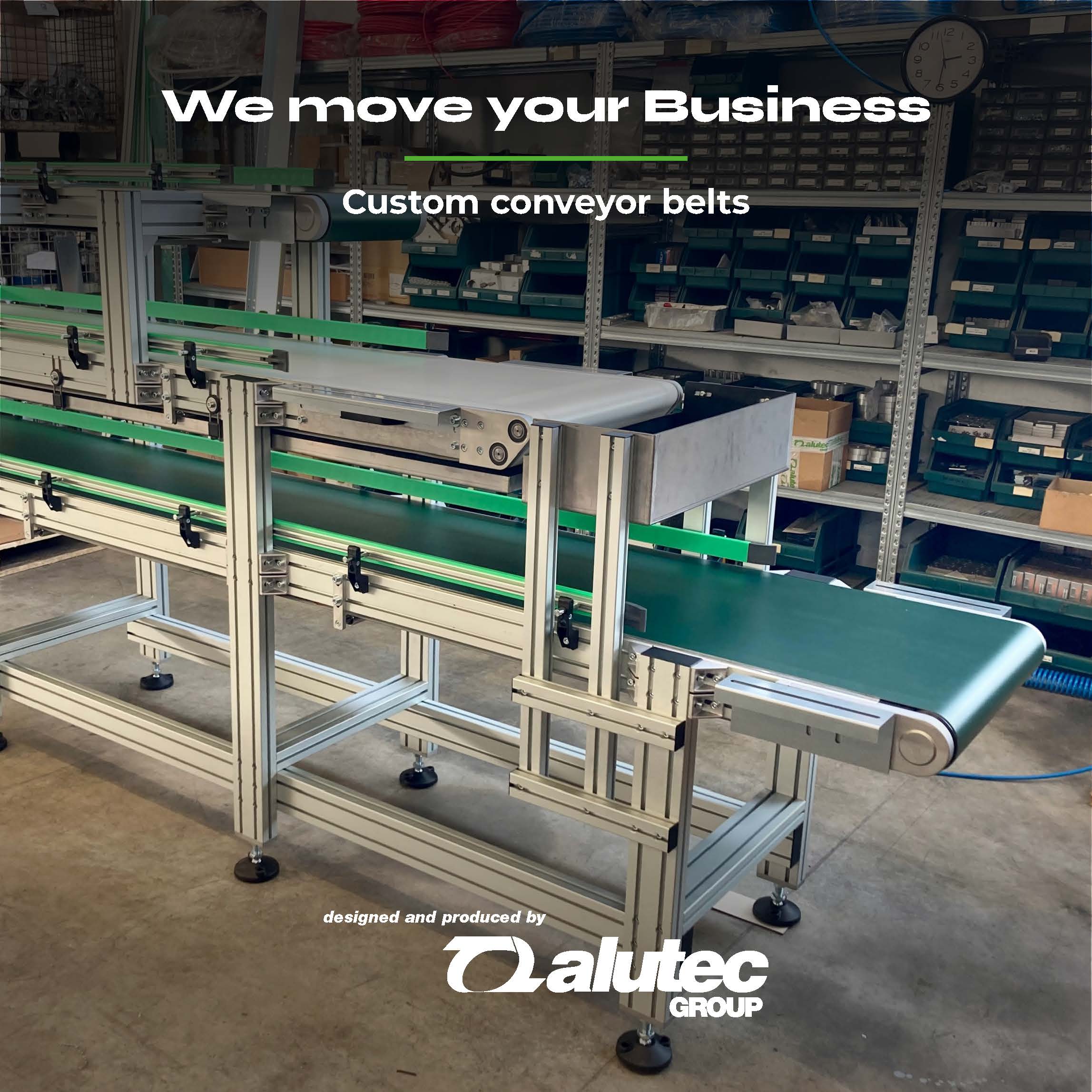

  • Custom conveyor belts

    The belt assembly is designed to transport metal parts weighing 7/8 kg/cad.
    It consists of 2 discharge belts, the upper and lower one, and a backlit belt in a central position.
    The backlit belt mounts a transparent TPU mat, which allows the parts to be checked, with a viewer and lamp mounted in the drawer located on the belt frame.
    The belt works in thrust and has a rubberized piece recovery box at the end, whe have mounted two Ø50mm idle rollers, the weight transported is approximately 220kg, we have also insert a tank for collecting waste oil
    The lower and upper discharge belts are fitted with ‘standard’ green TPU mats.
    The upper belt carries approximately 40kg and the lower belt carries approximately 260kg.
    All belts mount a rubberised drive roller that provides the necessary grip to handle the high load and to avoid any slippage during continuous restarts.

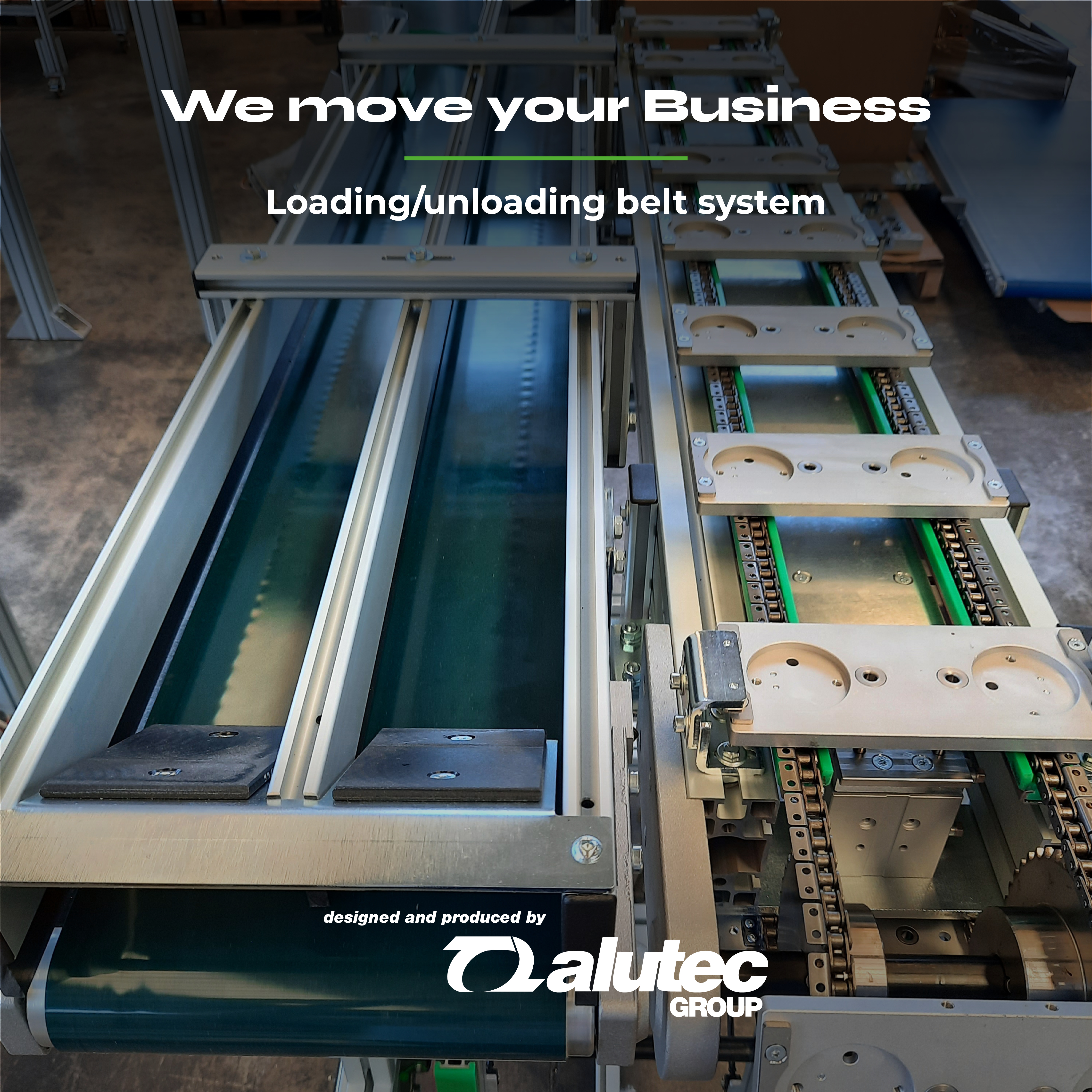

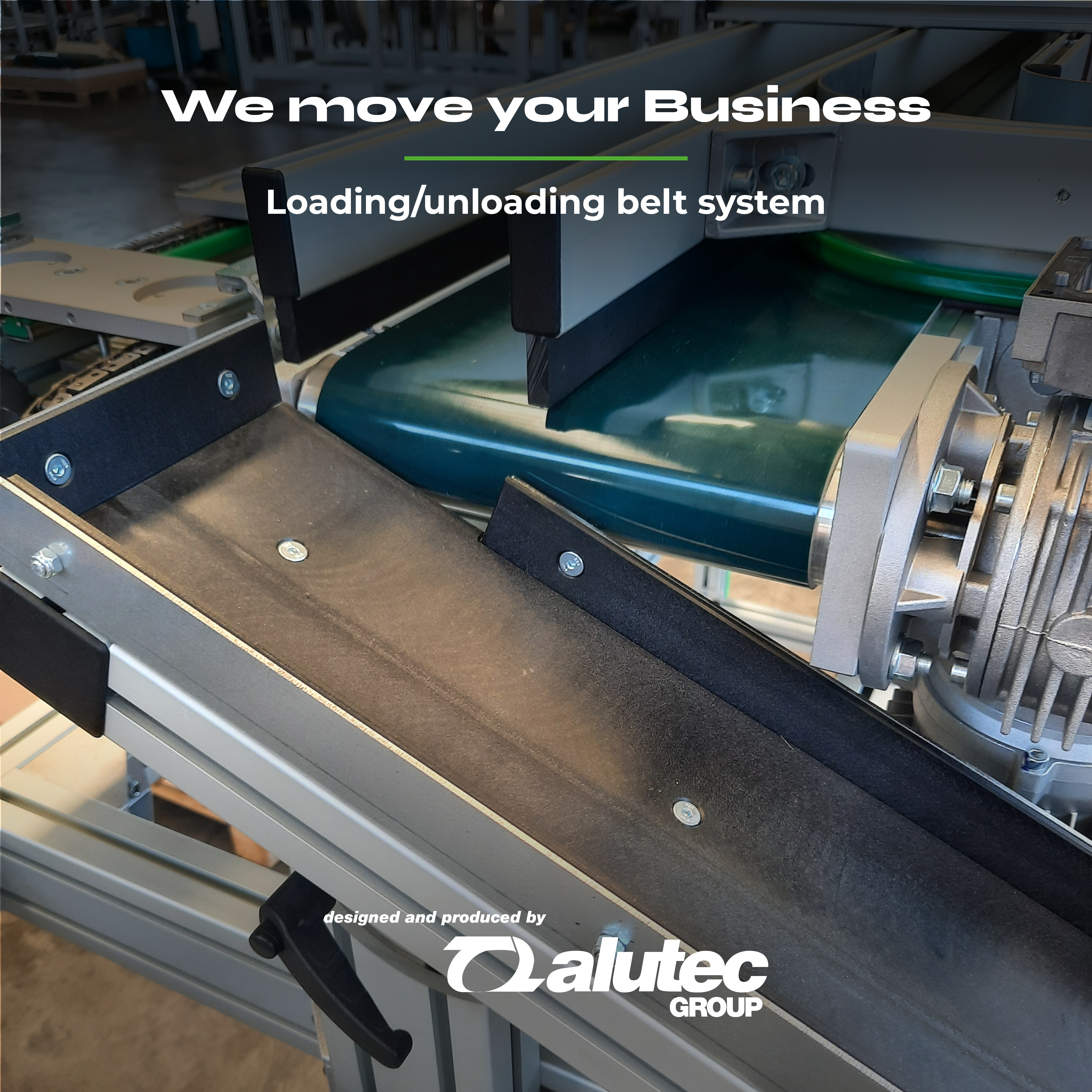

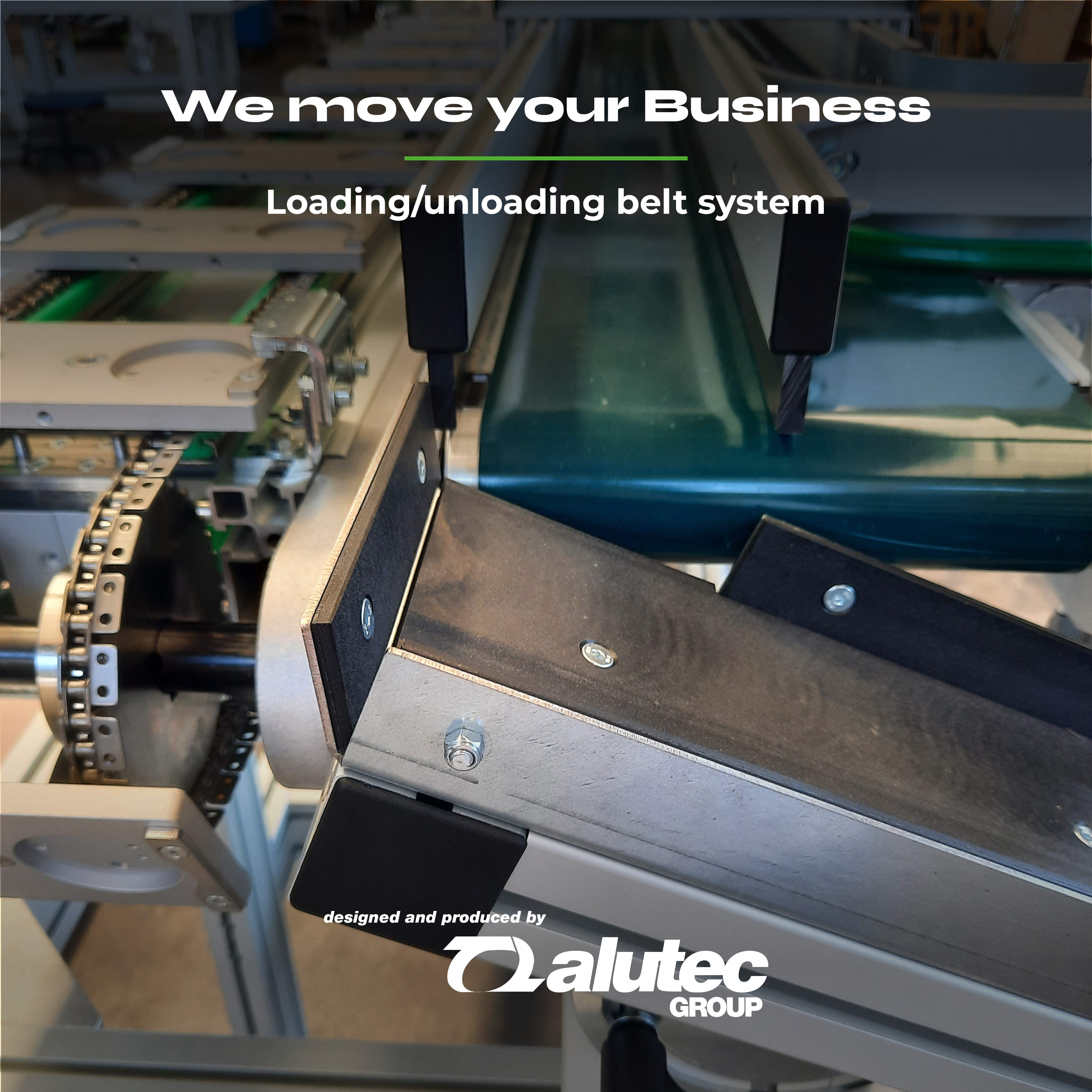

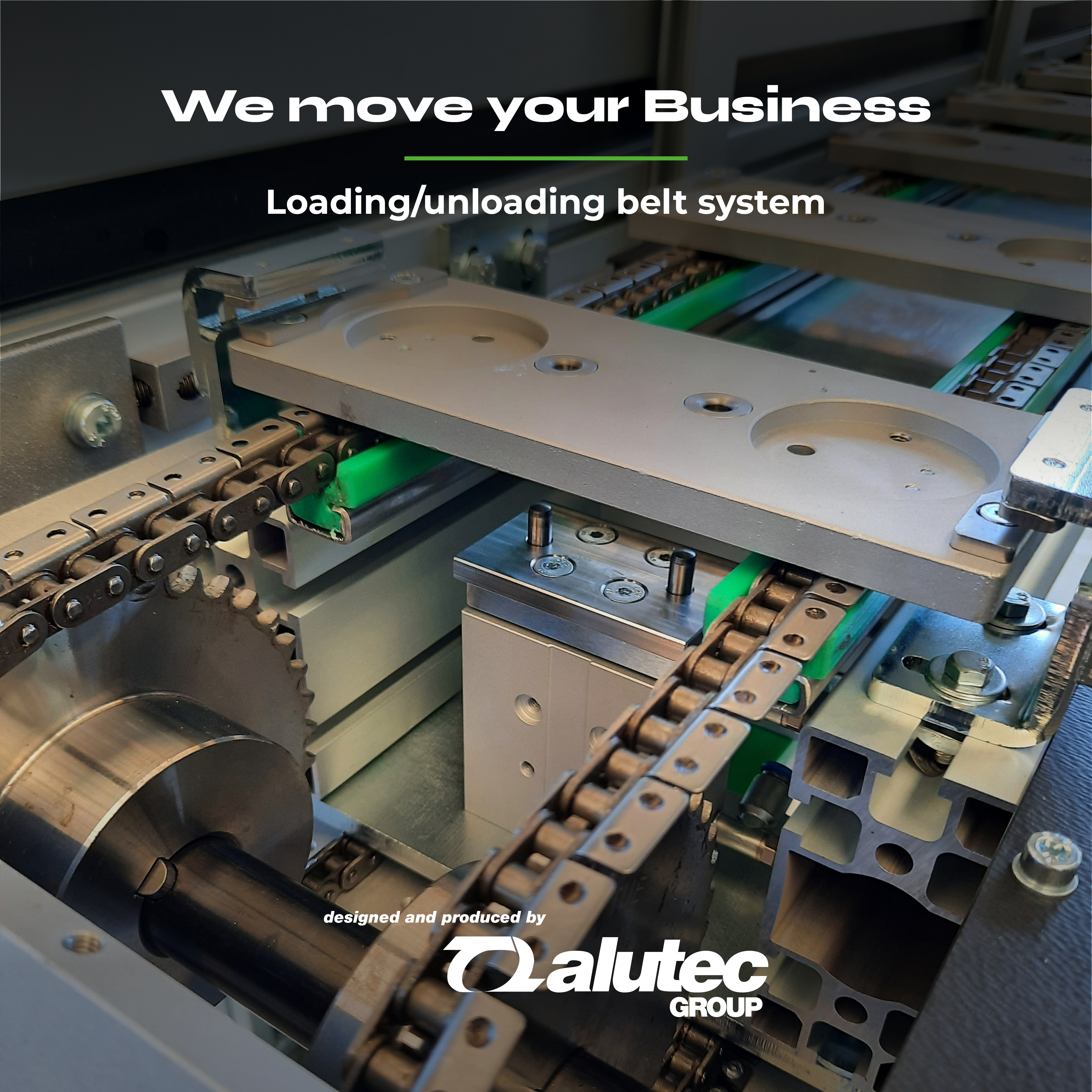

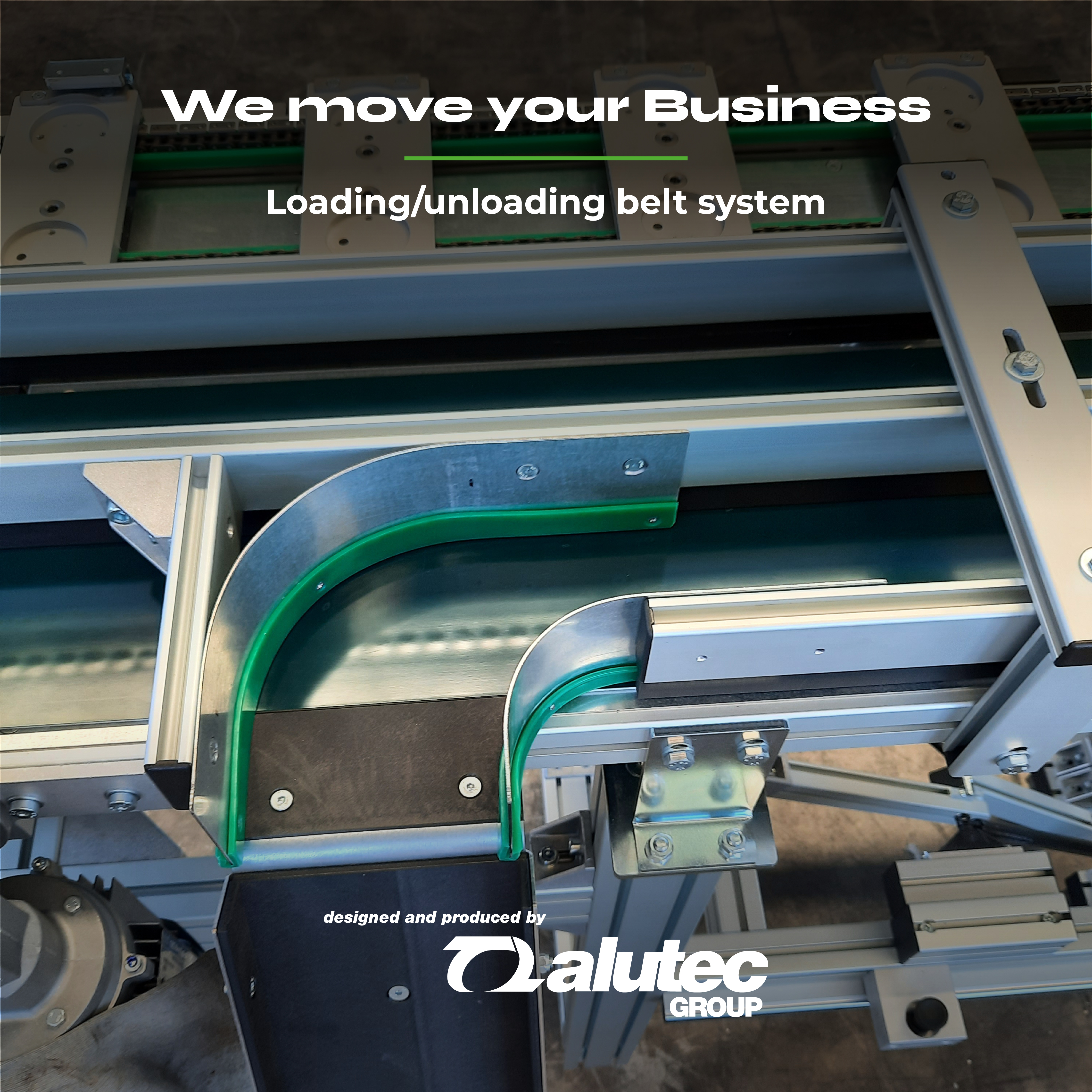

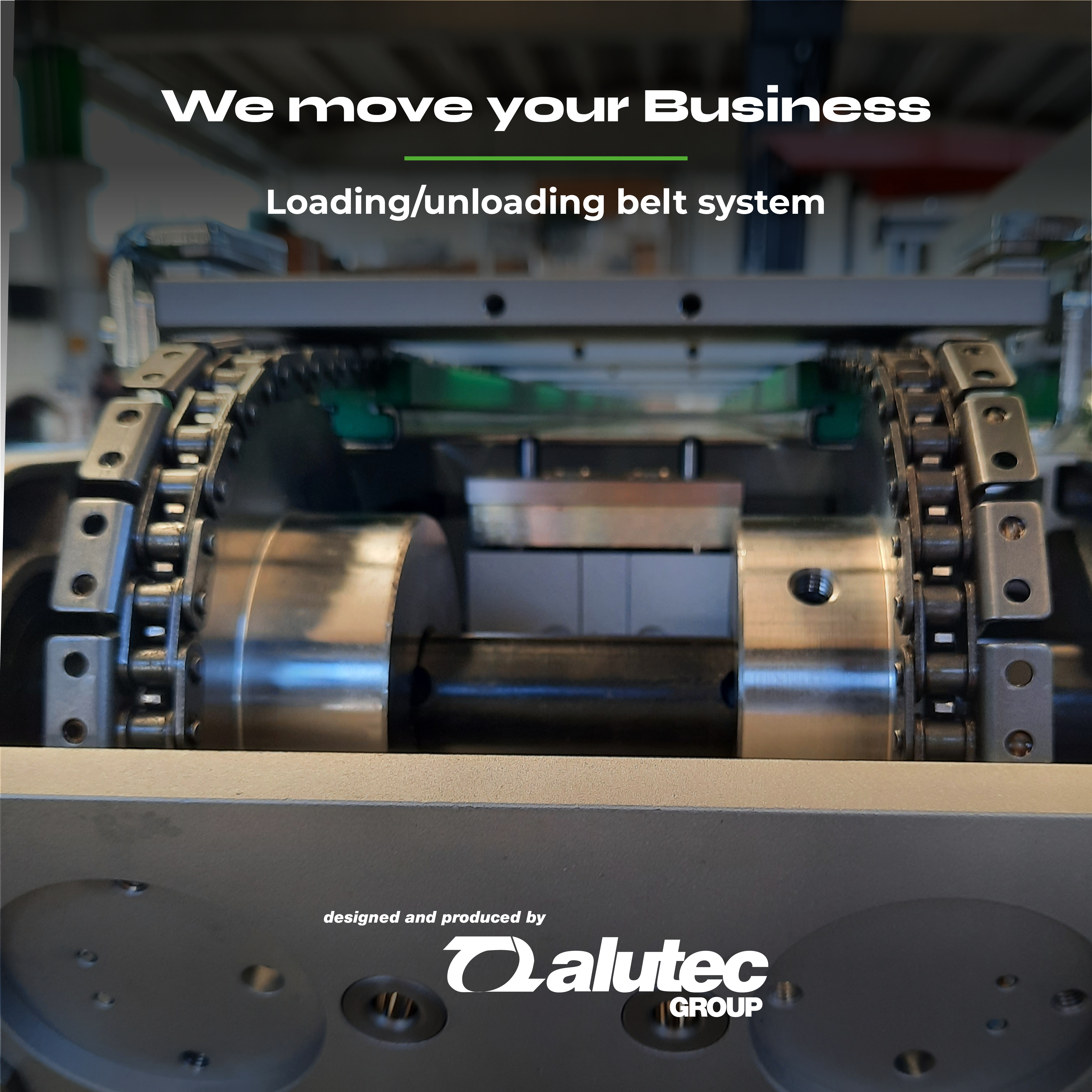

  • Loading/unloading belt system

    The machine was designed according to specific customer requirements, to convey products with predefined and constant dimensions. The products are cylindrical elements with a diameter of approximately 50 mm. They are received at the rear of the loading conveyor: in particular, a robot implemented by the customer positions them on aluminium pallets attached to chain links. In two specific positions, the pallets are stopped and centred by pneumatic cylinders placed under the belt, equipped with centring tips. At the end of the loading conveyor, the products are picked up by the robot and released onto the discharge conveyor chute, in two different lanes according to quality criteria The machine is equipped with wheels for manual insertion and extraction into an existing system, with a tilting system that raises the front pair of wheels. A locking knob ensures the stability of the tilting system.

    Alutec_Sistema_scarico.jpg Alutec_Sistema_scarico2.jpg Alutec_Sistema_scarico3.jpg Alutec_Sistema_scarico4.jpg Alutec_Sistema_scarico5.jpg Alutec_Sistema_scarico6.jpg
  • Conveyor bel for packaged food products

    This conveyor belt is made of Aluflex acetal resin for transporting boxed food products, to successive stations from packaging to product sorting.
  • Steel conveyor

    Steel conveyor belt made to allow the dripping of residual oil from products after passing through a previous station suitable for lubricating parts. The belt was set, as per the customer's request, at a speed of 1mt per Minute for a total length of 3mt. The conveyor belts are used in any production line and are characterized by extreme precision and attention to detail. Simple, reliable and silent, they can be made in any size and with different types of motorization.
  • WR 500

    Ready for delivery another custom WRA500 Cartesian robot, with 4-axis Optical Protection and dual dispensing tools.

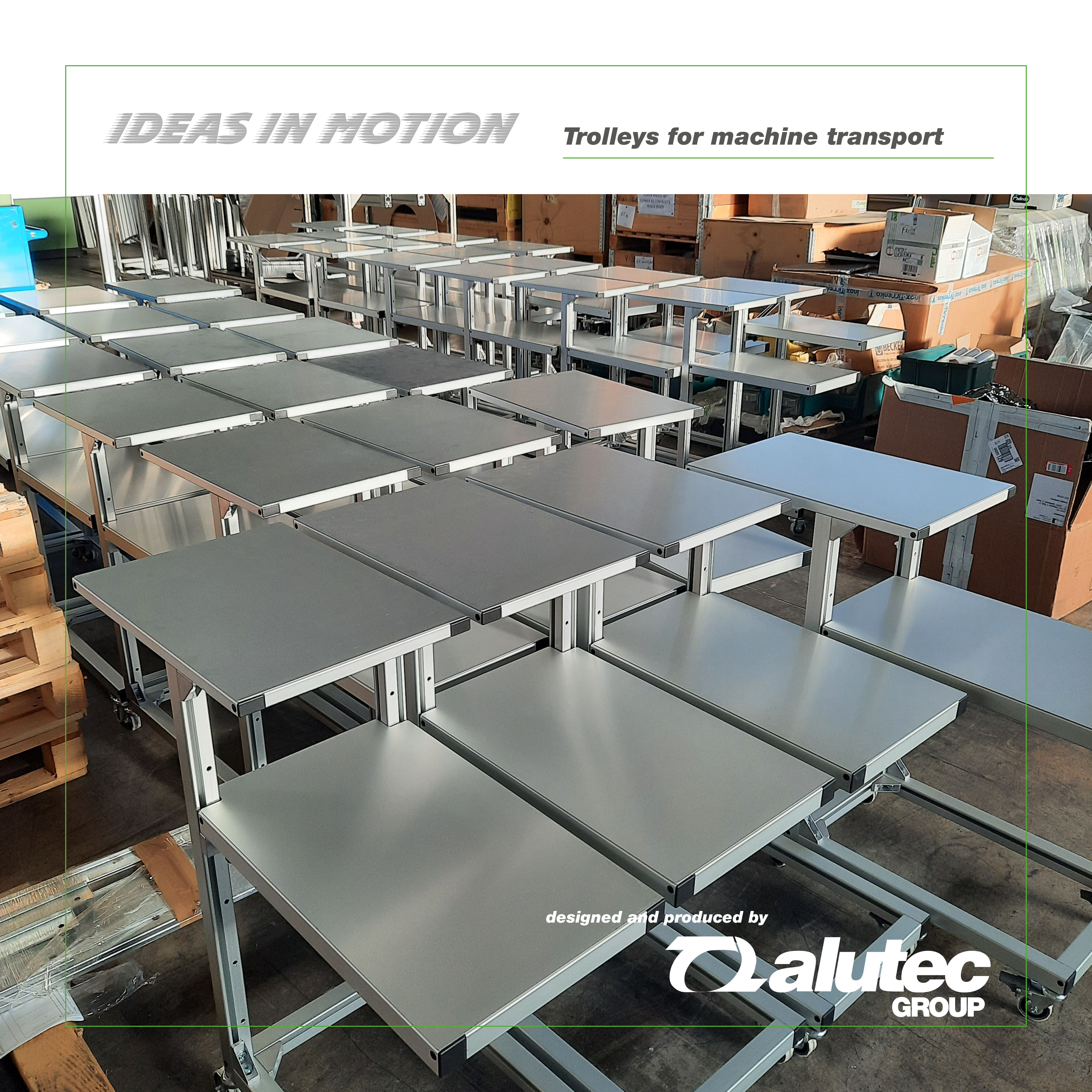

  • Machine transport carts

    For an important customer, world leader in the production of medical devices, we are delivering 50 trolleys that will transport dialysis machines. For this application we have used a standard 32×32 Alutec profile and pivoting wheels for easy handling.

    4. AL_Carrelli_Dialisi4.jpg

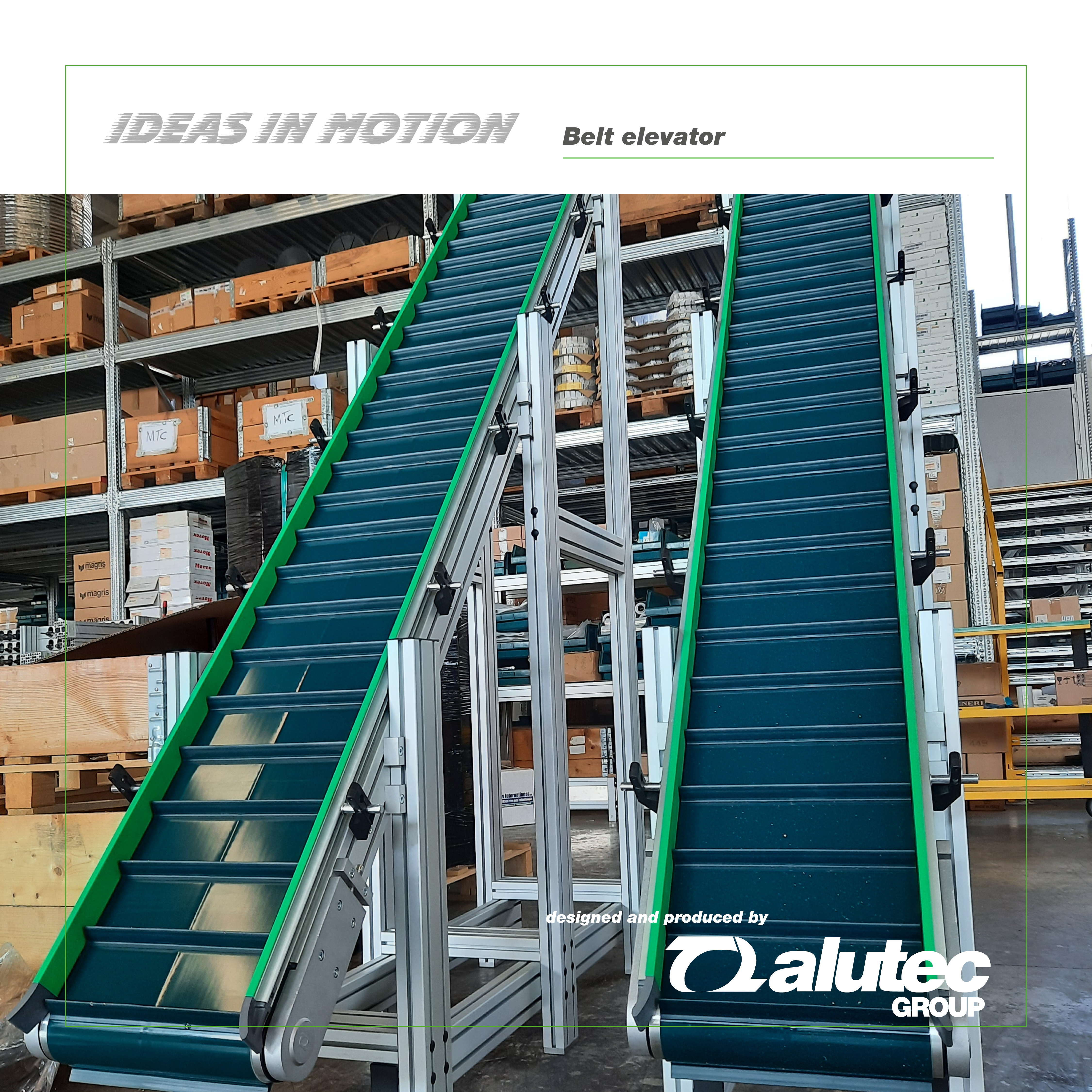

  • Belt elevator

    Cleated conveyor belt is a type of conveyor belt that is used to carry materials which are steep and inclined. Alutec designs and manufactures standardised and customised conveyor belts and systems.

  • Boxes

    For an artisan company dedicated to the processing of cured meats, we designed, manufactured and installed a palletizer, consisting of stainless steel structure and internal structural aluminum handling, pneumatic suction cup system, idle roller conveyor and box deviation. Palletizing schemes are created via touch screen operation panel; work programs can be modified and created with extreme ease by the operator.
  • Conveyor Belt

    Modular belt conveyor, particularly suitable for all applications where adaptability, impact resistance and easy sanitization are required. Contact us for a quote: commerciale@alutecsrl.it

  • Dynamic warehouse with station for processing

    The machine, designed to the Client's specific requirements, will be used to manually store specific products that will later be processed in automatic mode by other machines. Made with Alutec profile frame, chain conveyor with product housing pockets and corresponding centering device, Cartesian axis manipulator, product picking and positioning gripper.
  • Masmec

    This conveyor belt was designed for a line of a well-known car manufacturer used by the customer for unloading injectors. Our technical department studied the positioning of the part and developed the conveyor usingThe Aluflex steel chain for Channel 127.

  • Pill conveyor belt

    For a leading packaging company, we designed and built a belt for the pharmaceutical industry, capable of transporting 25,000 tablets per minute. The elevator with a 30-degree incline receives the tablets in a stainless steel hopper, which are subsequently transported to a height of 2.4 meters. A subsequent integration by the customer, arranges the pills in blisters that will be subsequently heat-sealed. - Everything is made of electropolished stainless steel, as required by pharmaceutical industry specifications.
