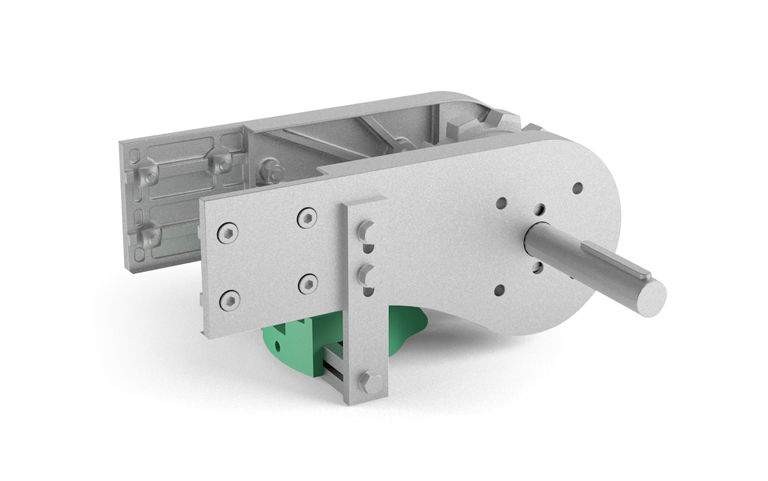

12 teeth pulling head (right) for chain 114,3

cod. ATD12127

12 teeth pulling head (right) for chain 114,3

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

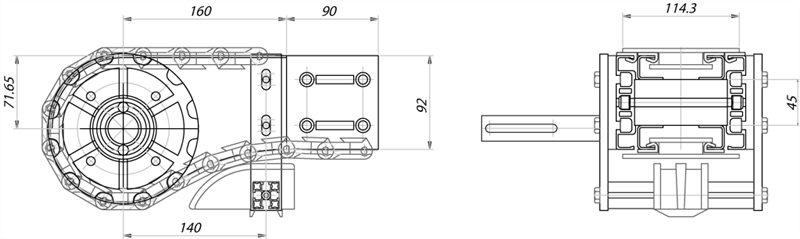

Art. No. Channel dimension (mm) Chain width (mm) Pitch Ø (mm) External Ø (mm) No. of teeth
ATD12127 127 114,3 147,2 149,9 12
