| Art. No. | Material | Pulleys | Shaft and gear motor fastening (mm) | Type | Weight (Kg) |
|---|---|---|---|---|---|

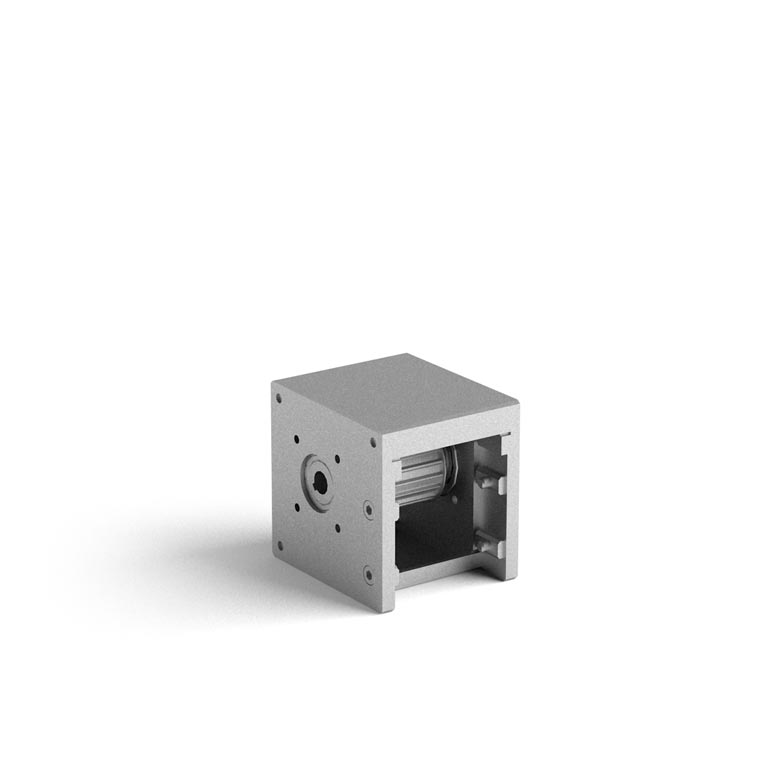

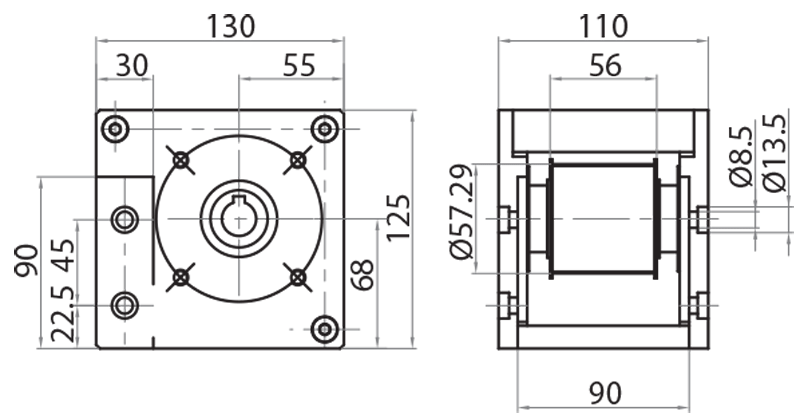

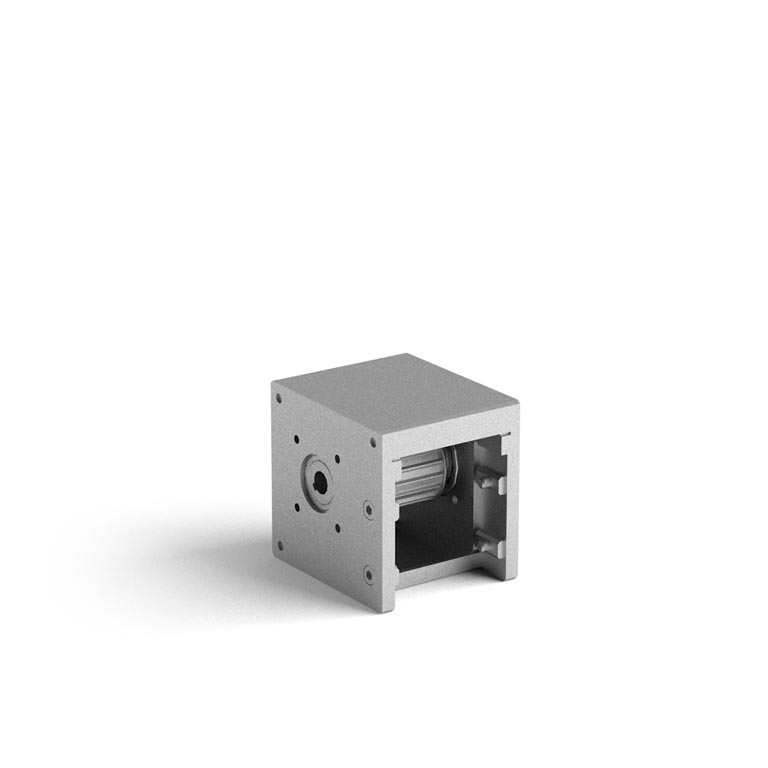

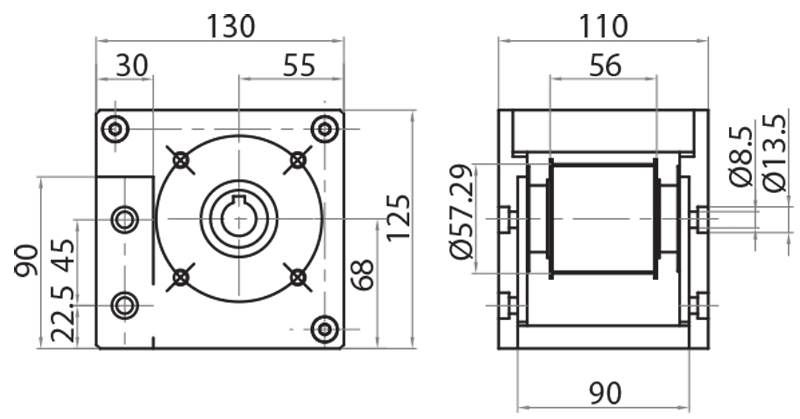

| 804550 | aluminium and steel | z 18 pitch Ø=57,30 mm external Ø=55,45 mm |
Ø18 - Ø87 | for belt 50AT10 | 2,500 |
Suitable for MVF44 Bonfiglioli fastening.
Available also for MVF49 Bonfiglioli gear motor.
