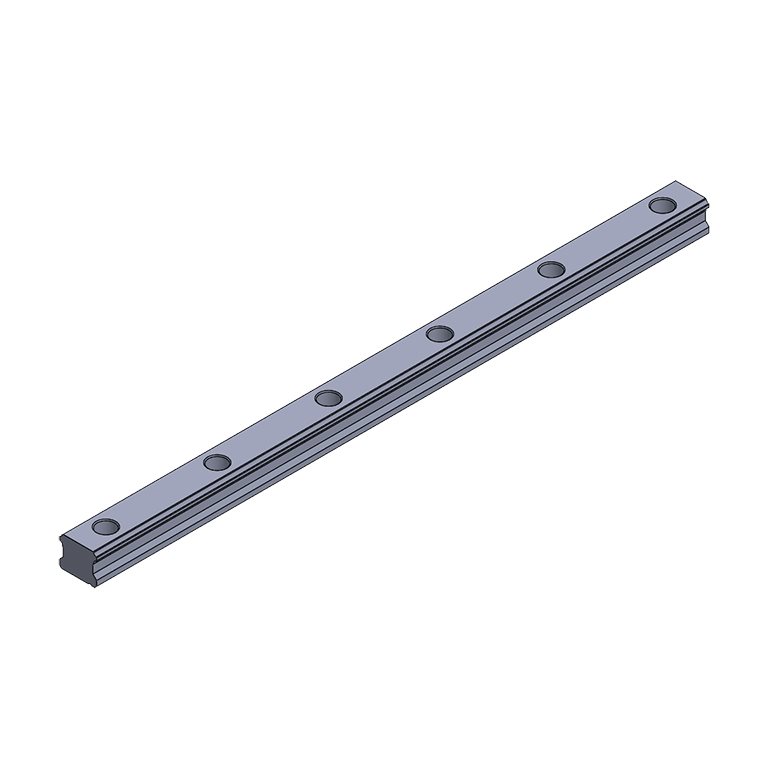

Linear guideway for series 20 carriages

cod. C1612040S

Linear guideway for series 20 carriages

Download

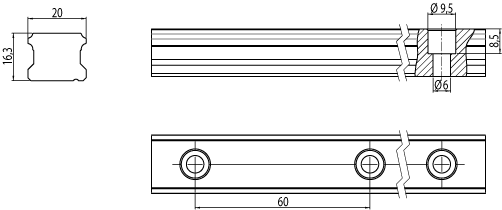

To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Description Load (N) Max speed (m/s) Weight
C1612040S steel rail dynamic 17750
static 27760		 2,5 2,150 Kg/m
