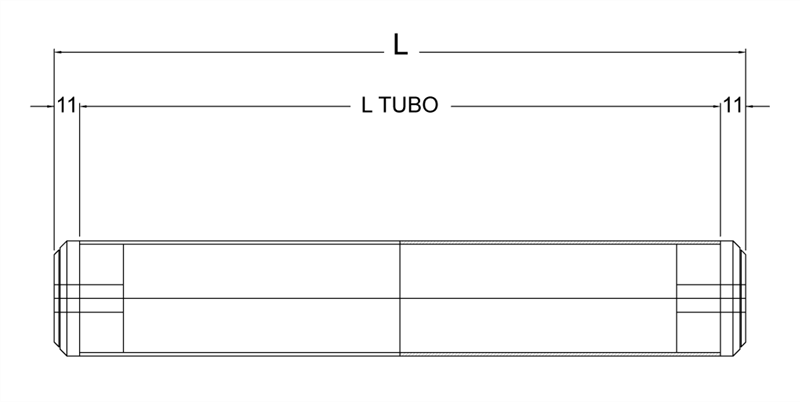

| Art. No. | Material | Ø (mm) | Thickness (mm) | Min. L (mm) | Max L (mm) | Assembly set |
|---|---|---|---|---|---|---|
| 905000-L | aluminium | external 50, internal 47 | 1,5 | 65 | 800 | with nr.2 lateral pins 700251P, through pin 700251P-L and support 700412 |
| 905001-L | zinc plated iron | external 50, internal 47 | 1,5 | 65 | 800 | with nr.2 lateral pins 700251P, through pin 700251P-L and support 700412 |
| 905002-L | stainless steel | external 50, internal 47 | 1,5 | 65 | 800 | with nr.2 lateral pins 700251P, through pin 700251P-L and support 700412 |
| 905003-L | PVC | external 52, internal 47 | 2,5 | 65 | 300 | with nr.2 lateral pins 700251P, through pin 700251P-L and support 700412 |
Contact our Technical Department for special requirements regarding thickness, length or load capacity.

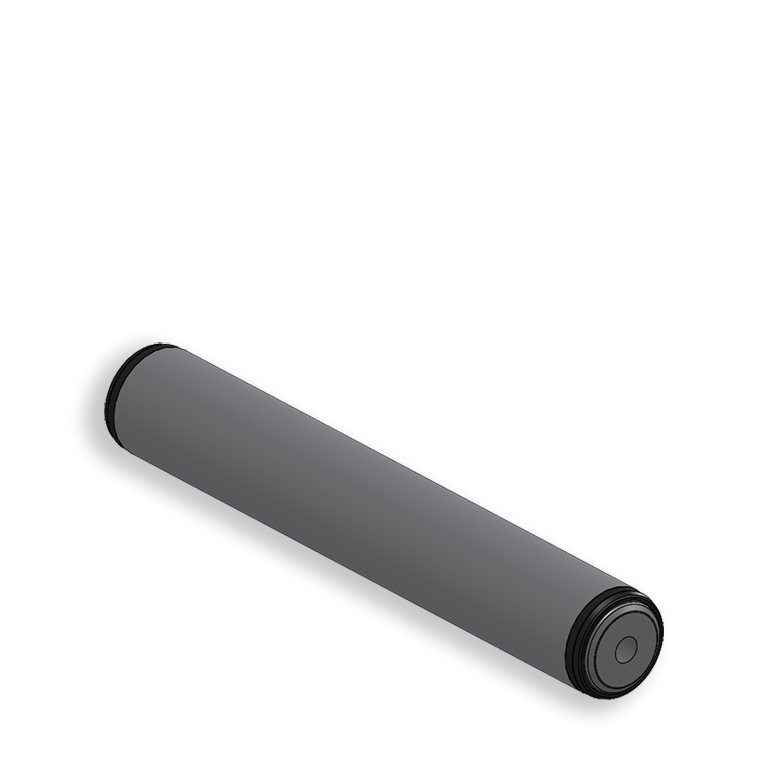

| 905000-L | Aluminium idle roller with idle caps 700252 | 905000-L | 0.00€ | |
| 905001-L | Zinc plated iron idle roller with idle caps 700252 | 905001-L | 0.00€ | |
| 905002-L | Stainless steel idle roller with idle caps 700252 | 905002-L | 0.00€ | |
| 905003-L | PVC idle roller with idle caps 700252 | 905003-L | 0.00€ |
