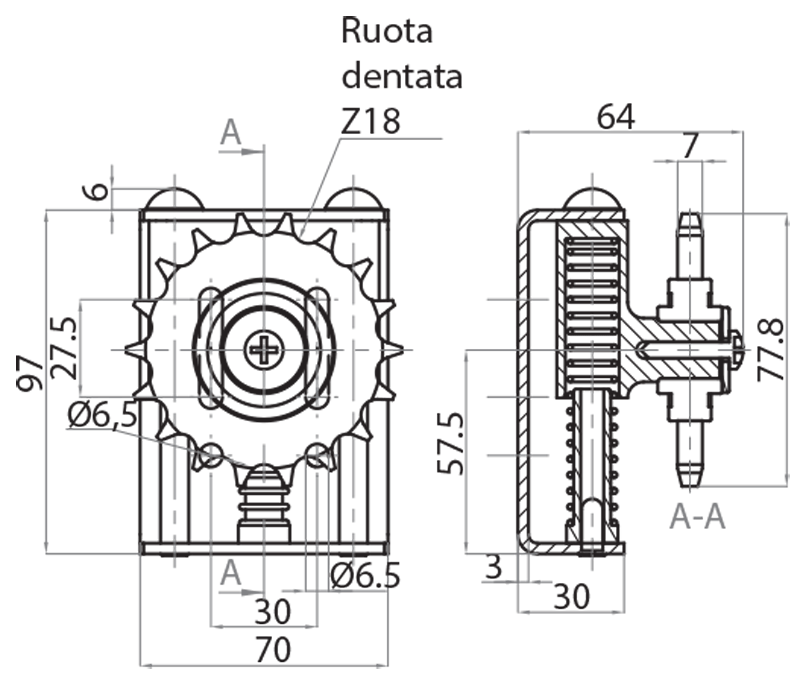

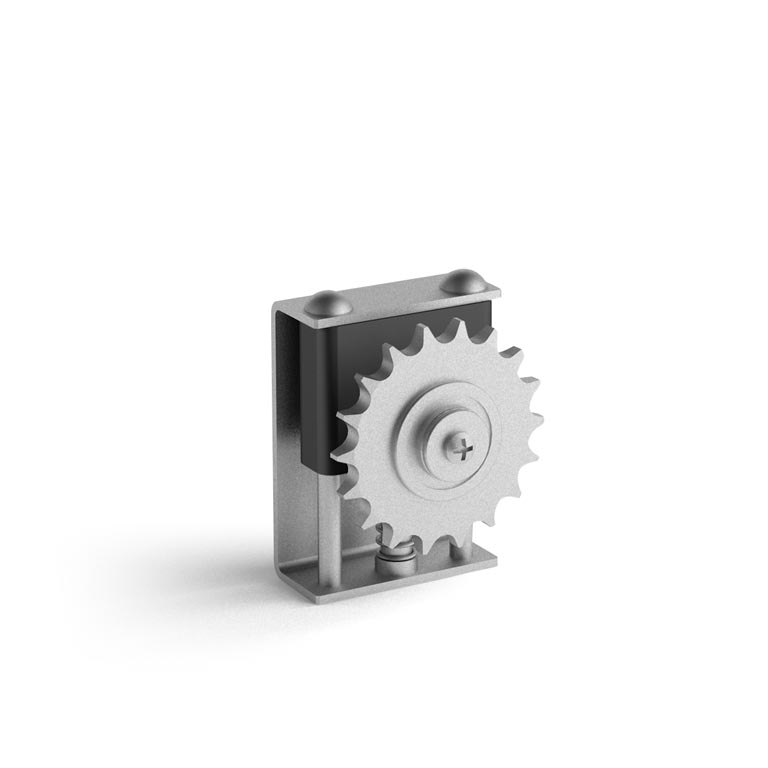

Sprocket tightener

To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

Art. No.	Material	Function	Min. Load (N)	Max. Load (N)	Stroke (mm)
700256	external part, sprocket, pins and spring made of zinc coated steel; cursor and spring guide made of black polyamide	for roller chain type DIN 8187 08-B1	60	110	40
