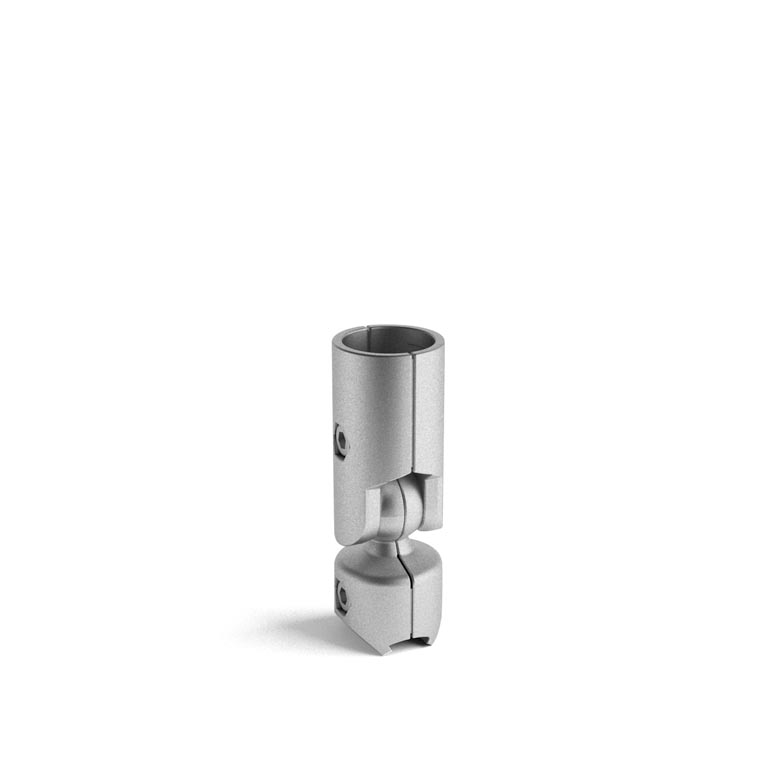

0-90° ball connector

cod. 350007

0-90° ball connector

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Weight (Kg)
350007 die-cast aluminium 0,145
Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
