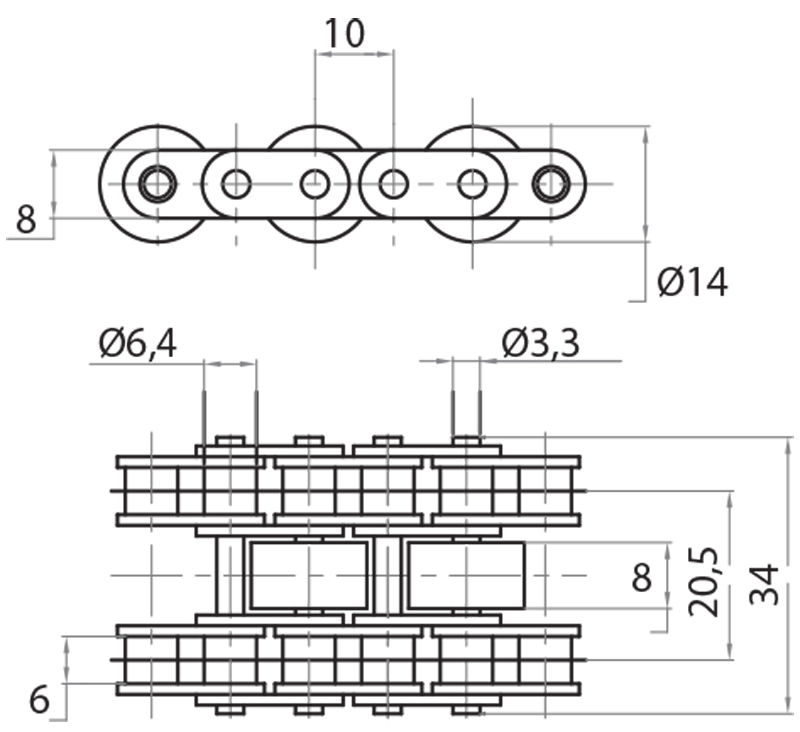

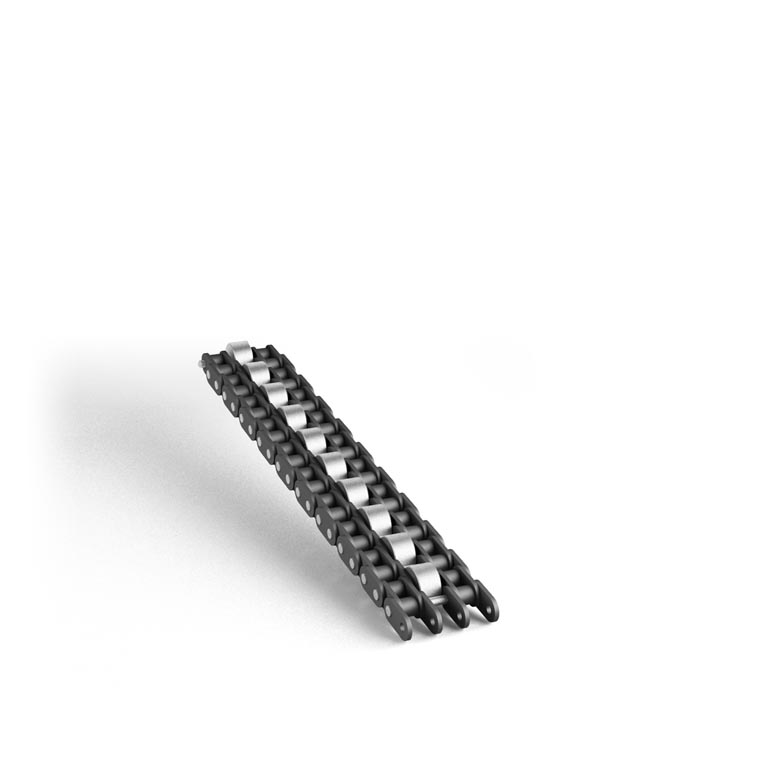

3/8" fly-roller chains

cod. 939901-D

3/8" fly-roller chains


Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Supply size Dimensions Tensile medium strength (Kg) Weight
939900 steel chain - length on demand pitch 3/8" 1900 6,800 Kg/m
939901 steel junction - single piece pitch 3/8" 1900 0,018 Kg
939900-D delrin chain - length on demand pitch 3/8" 1900 5,100 Kg/m
939901-D delrin junction - single piece pitch 3/8" 1900 0,012 Kg
939900 3/8" fly-roller steel chain 939900 0.00€
939901 Junction for 3/8" fly-roller steel chain 939901 0.00€
939900-D 3/8" fly-roller delrin chain 939900-D 0.00€
939901-D Junction for 3/8" fly-roller delrin chain 939901-D 0.00€
