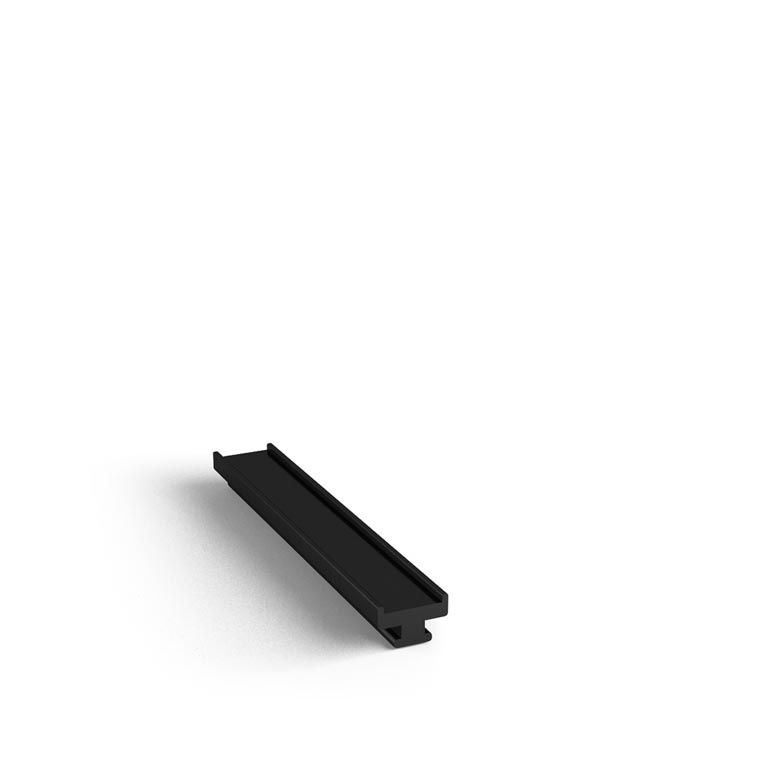

Belt-drive profile

cod. 930017

Belt-drive profile


Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

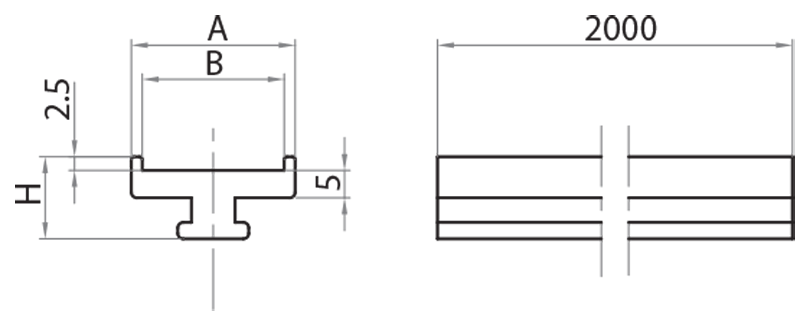

Art. No. Material Supply size Dimensions AxH (mm) Belt hollow B (mm) Weight (Kg/m)
930017 high density black polyethylene 2 m bars 24x15 20 0,170
930018 high density black polyethylene 2 m bars 30x15 26 0,210
930017 Belt-drive profile 24 mm width 930017 0.00€
930018 Belt-drive profile 30 mm width 930018 0.00€
