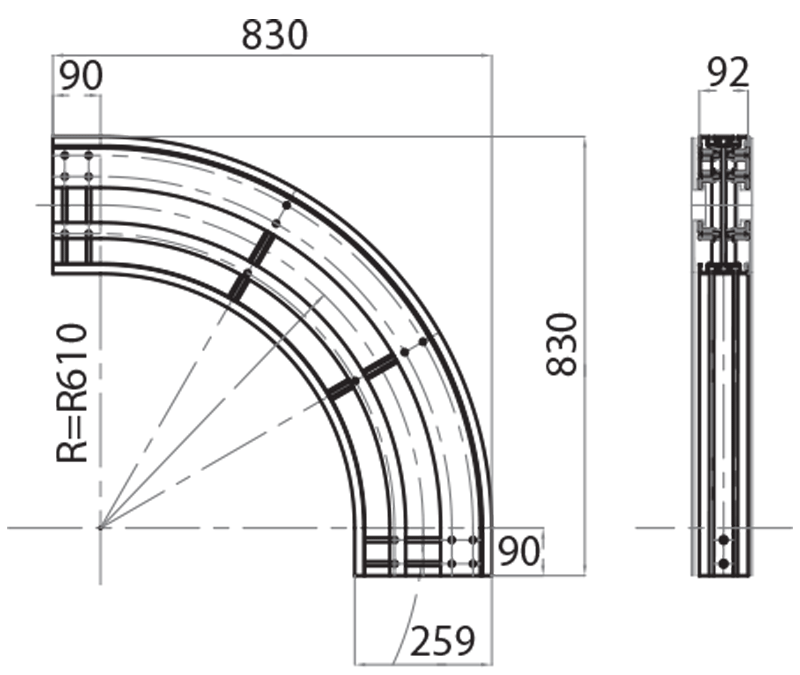

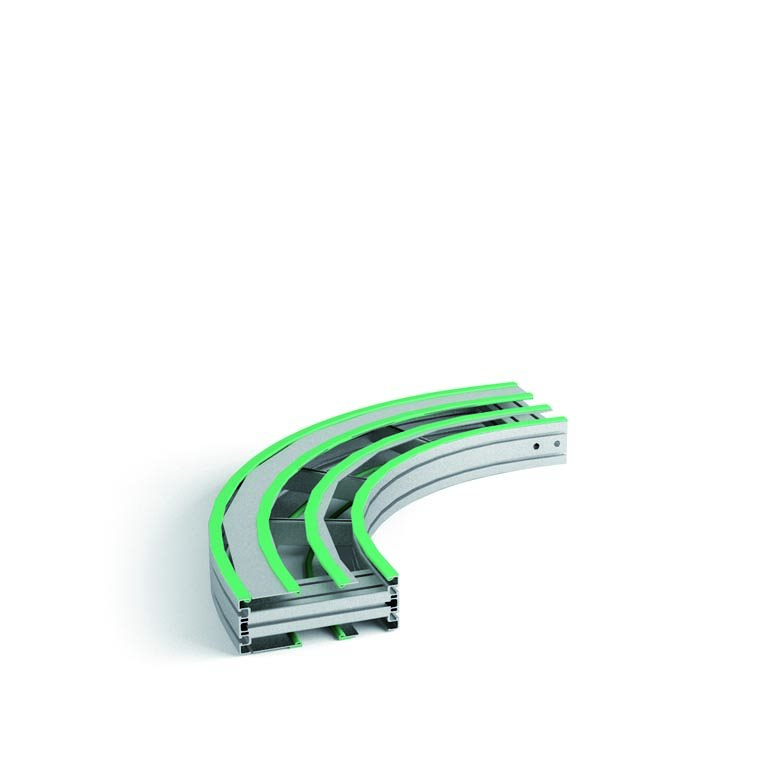

Return 90° sliding curve average radius 610 mm
cod. AC661259
Return 90° sliding curve average radius 610 mm
Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register
o
log In
Art. No.
Channel dimension (mm)
Chain width (mm)
Medium radius (mm)
Angle
AC661259
259
254
610
90°
