| Art. No. | Profile type (mm) | Max useful stroke (mm) | Forward speed (m/s) | Max acceleration (m/s²) | Repetition accuracy (mm) |
|---|---|---|---|---|---|
| ML30HPC | 30x35 | 1000 | 1 | 1 | +/- 0,05 |

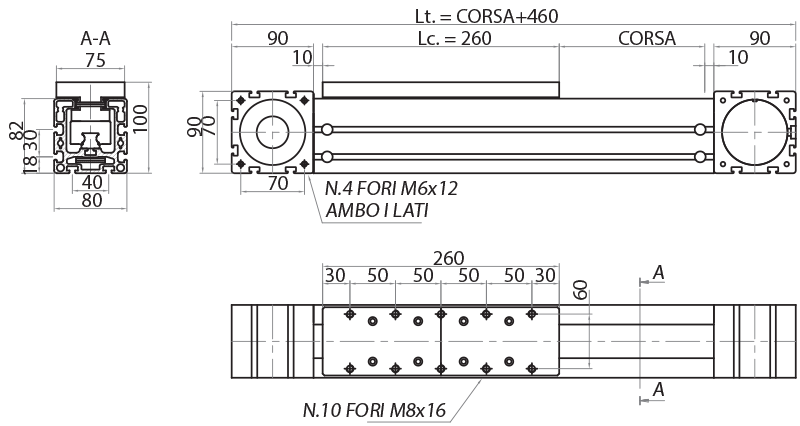

| ML45HPC | 45x48 | 3000 | 3 | 10 | +/- 0,05 |
| ML60HPC | 60x60 | 5000 | 4 | 20 | +/- 0,05 |
| ML80HPC | 80x82 | 5000 | 4 | 20 | +/- 0,05 |
| ML120HPC | 120x90 | 5000 | 4 | 20 | +/- 0,05 |
| ML30HPC | Drive with polyurethane belt with steel inserts, 30mm belt | ML30HPC | 0.00€ | |
| ML45HPC | Drive with polyurethane belt with steel inserts, 45mm belt | ML45HPC | 0.00€ | |
| ML60HPC | Drive with polyurethane belt with steel inserts, 60mm belt | ML60HPC | 0.00€ | |
| ML80HPC | Drive with polyurethane belt with steel inserts, 80mm belt | ML80HPC | 0.00€ | |
| ML120HPC | Drive with polyurethane belt with steel inserts, 120mm belt | ML120HPC | 0.00€ |
