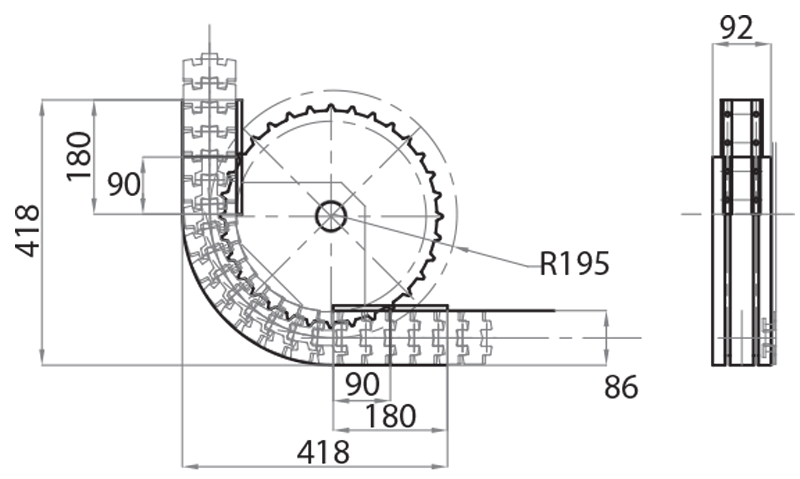

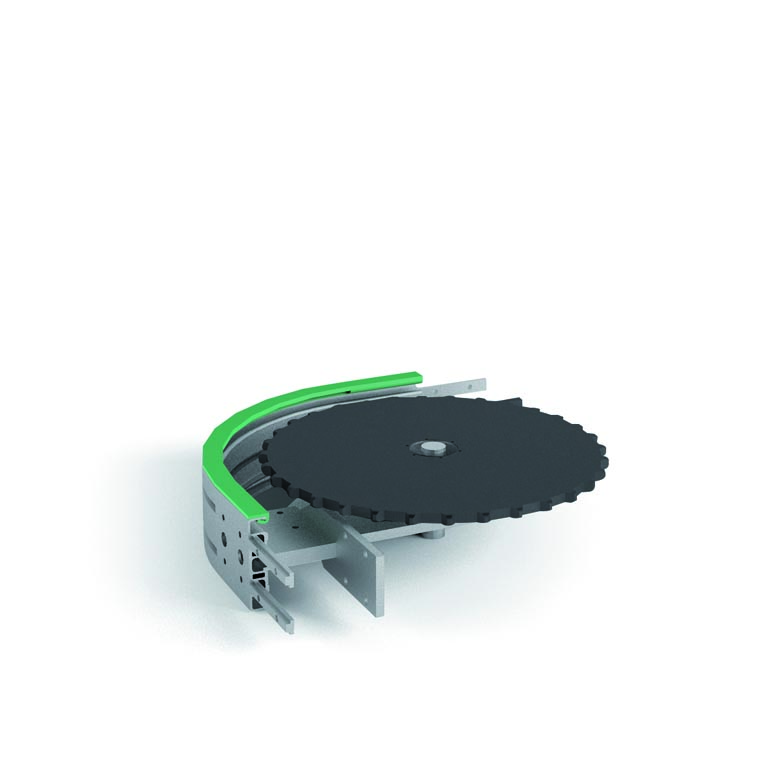

One way 90° idle curve average radius 200 mm

To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

Art. No.	Channel dimension (mm)	Chain width (mm)	Medium radius (mm)	Angle
AR132086-90	86	82,5	200	90°
AR100086-90*	86	82,5	200	90°

* Pulley without teeth

AR132086-90	One way 90° idle curve average radius 200 mm	AR132086-90	0.00€
AR100086-90	One way 90° idle curve average radius 200 mm (pulley without teeth)	AR100086-90	0.00€
