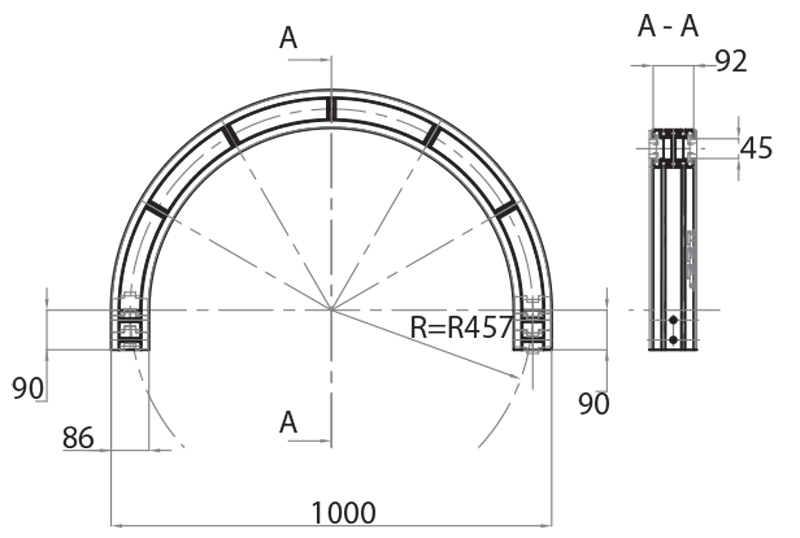

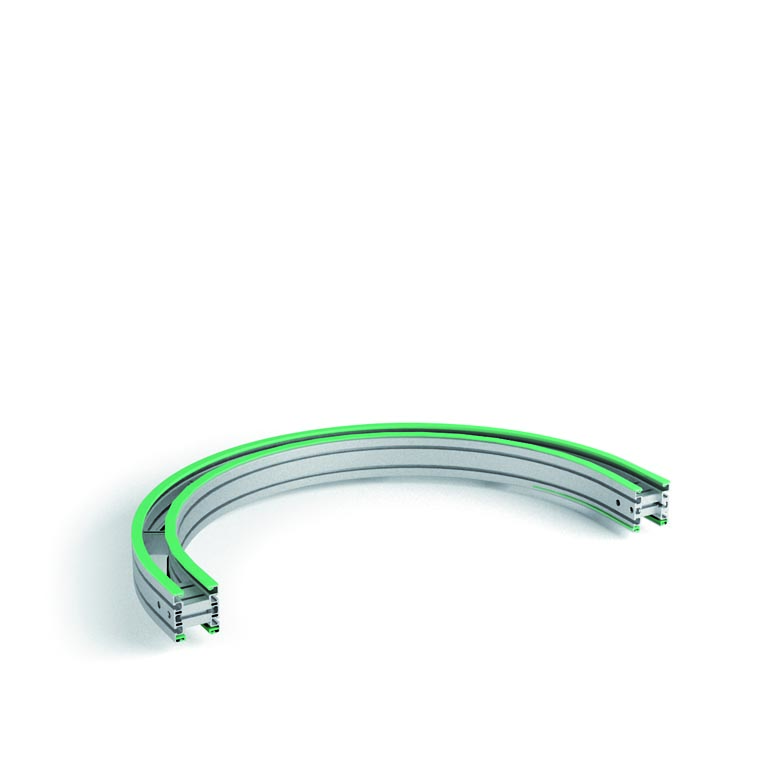

Return 180° sliding curve average radius 457 mm

cod. AC945086

Return 180° sliding curve average radius 457 mm

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Channel dimension (mm) Chain width (mm) Medium radius (mm) Angle
AC945086 86 82,5 457 180°
