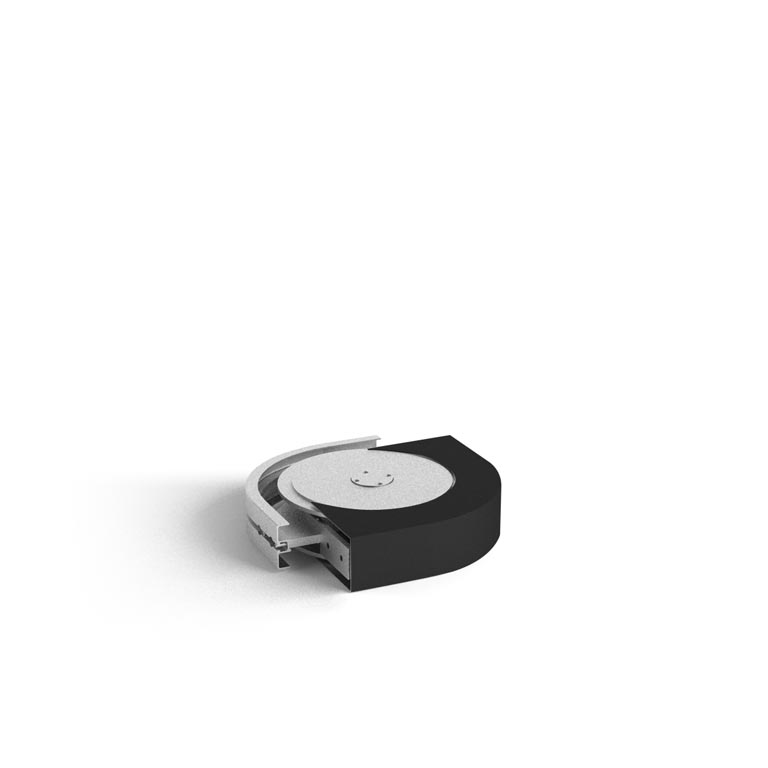

Return 90° idle curve

cod. AR200065-90

Return 90° idle curve

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

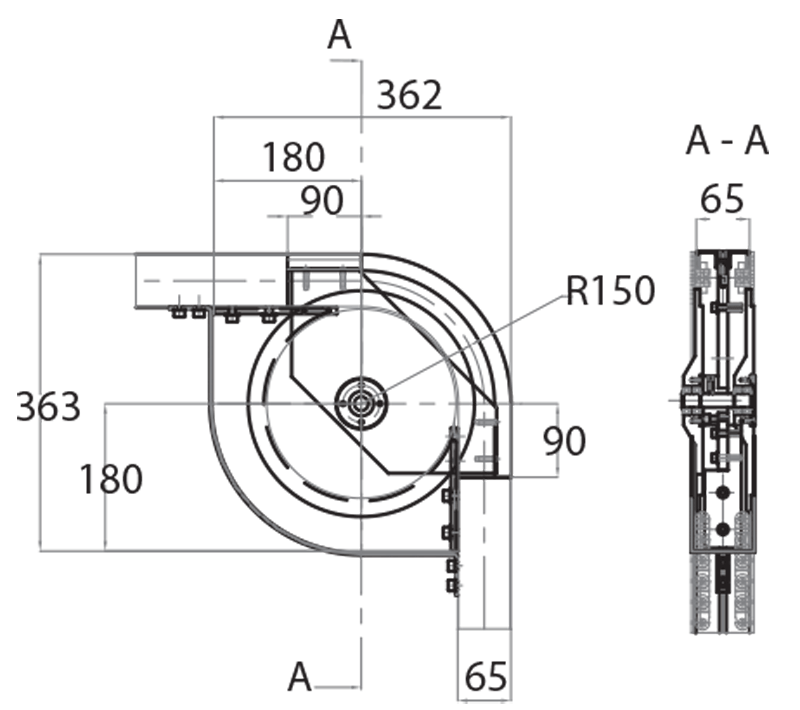

Art. No. Channel dimension (mm) Chain width (mm) Medium radius (mm) Angle
AR200065-90 65 63 150 90°
Pulley without teeth
