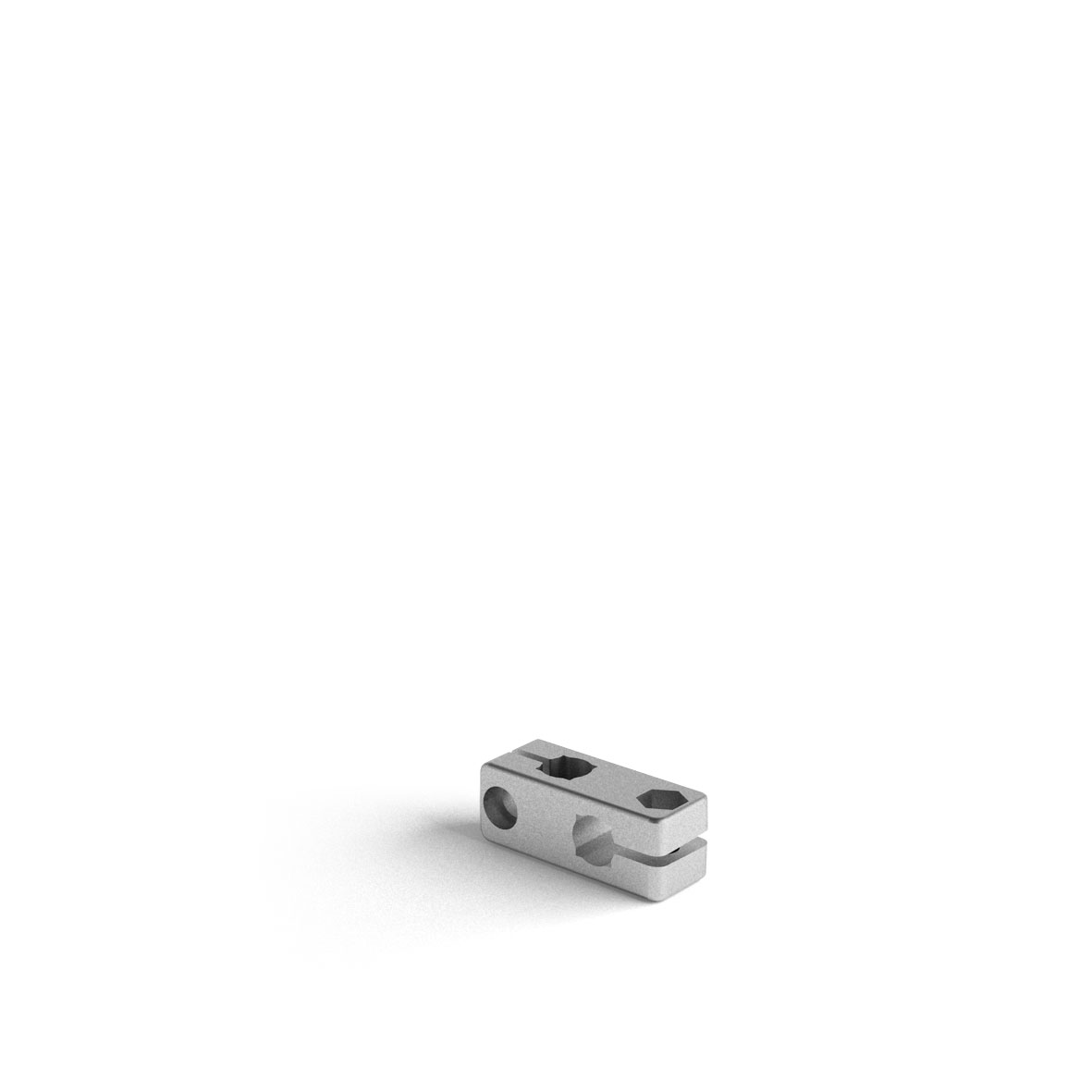

Cross connector with holes 10x10 - Ø12 mm

cod. 730020

Cross connector with holes 10x10 - Ø12 mm

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Rod type Supply set Weight (Kg)
730020 sandblasted aluminium Round Ø12 mm - square 10 mm complete with n.2 H.S.H.C. M6x16 high head and n.2 hexagon nuts M6 0,047
