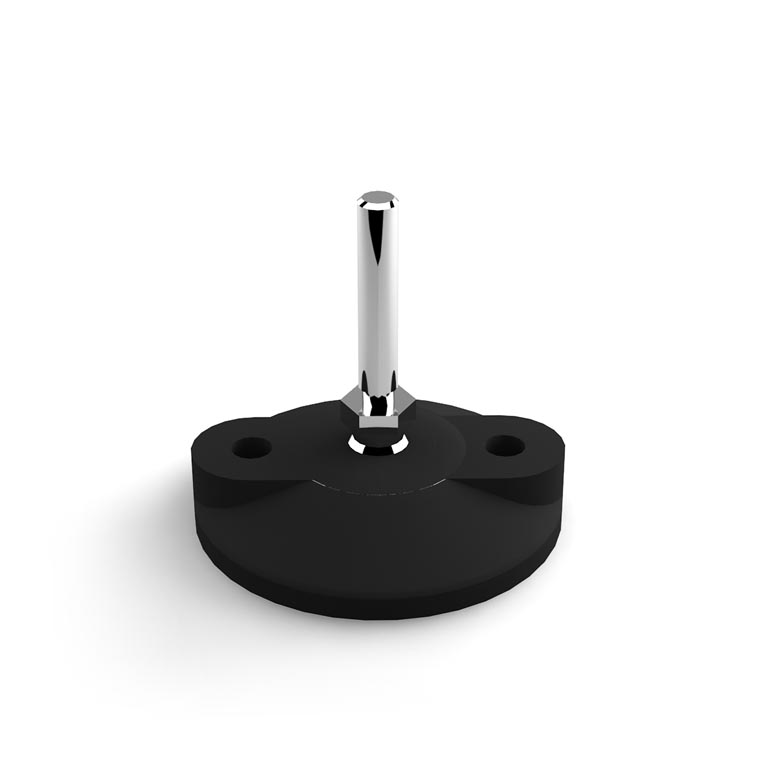

Anti-vibration fixable articulated feet Ø80 mm

To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

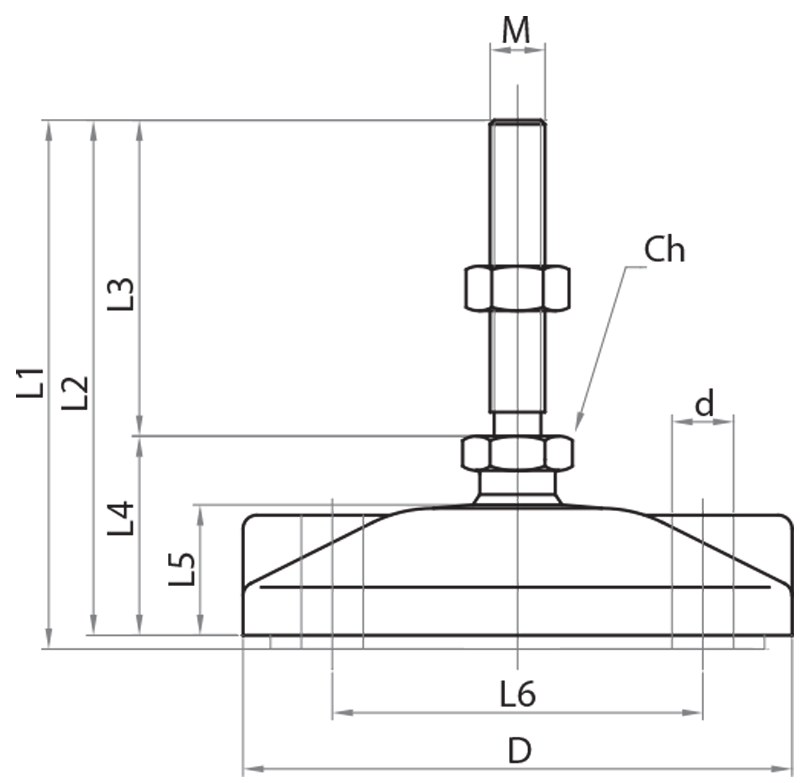

Art. No.	Max Load (Kg)	Base diameter (mm)	Stem diameter	Weight (Kg)	L1	L2	L3	L4	L5	L6	D	M	Ch
418008	1000	80	M8	0,112	73	71	42	29	19	54,5	80	8	14
418010	1000	80	M10	0,126	73	71	42	29	19	54,5	80	10	14
418010/L	1000	80	M10	0,126	101	99	70	29	19	54,5	80	10	14
418012	1000	80	M12	0,124	73	71	42	29	19	54,5	80	12	14
418012/L	1000	80	M12	0,144	101	99	70	29	19	54,5	80	12	14
418016	1000	80	M16	0,216	100	96	70	26	19	54,5	80	16	24
418020	1000	80	M20	0,299	130	126	100	26	19	54,5	80	20	14
418021	1000	80	M20	0,299	200	196	170	26	19	54,5	80	20	14

418008	Anti-vibration fixable articulated foot Ø80 M8 H=73mm	418008	0.00€
418010	Anti-vibration fixable articulated foot Ø80 M10 H=73mm	418010	0.00€
418012	Anti-vibration fixable articulated foot Ø80 M12 H=73mm	418012	0.00€
418016	Anti-vibration fixable articulated foot Ø80 M16 H=100mm	418016	0.00€
418020	Anti-vibration fixable articulated foot Ø80 M20 H=130mm	418020	0.00€
418021	Anti-vibration fixable articulated foot Ø80 M20 H=200mm	418021	0.00€
418010L	Anti-vibration fixable articulated foot Ø80 M10 H=101mm	418010L	0.00€
418012L	Anti-vibration fixable articulated foot Ø80 M12 H=101mm	418012L	0.00€
