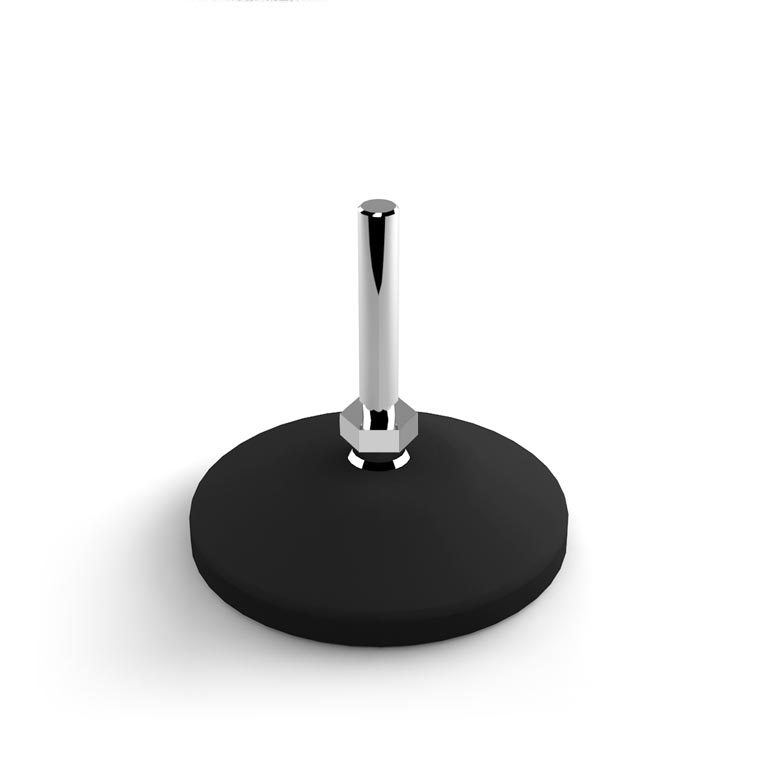

Anti-vibration articulated feet Ø80 mm

To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

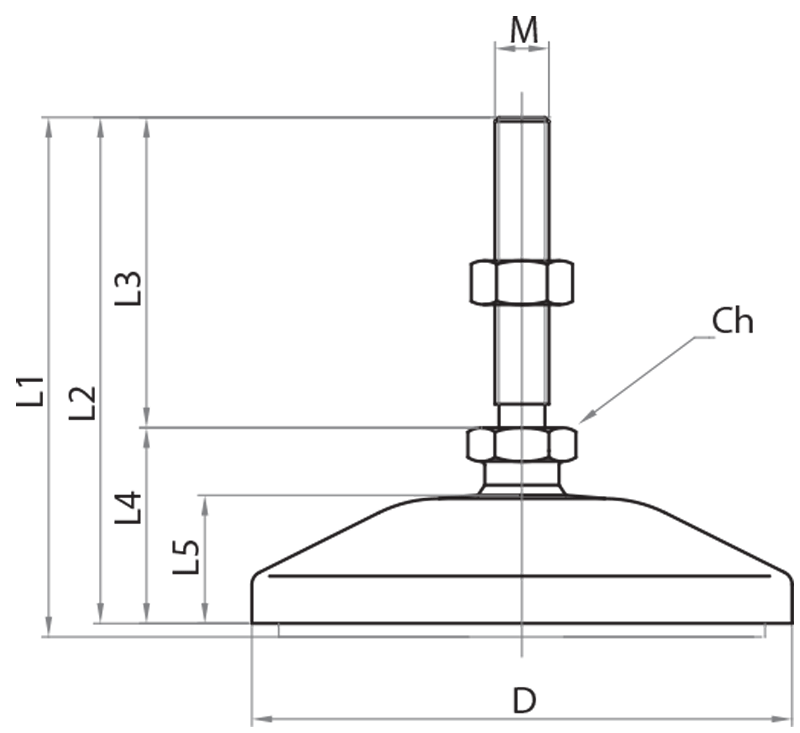

Art. No.	Max Load (Kg)	Base diameter (mm)	Stem diameter	Weight (Kg)	L1	L2	L3	L4	L5	D	M	Ch
408008	1000	80	M8	0,100	73	69	42	27	19	80	8	14
408010	1000	80	M10	0,114	73	69	42	27	19	80	10	14
408010/L	1000	80	M10	0,116	100	97	70	27	19	80	10	14
408012	1000	80	M12	0,112	79	76	42	24	19	80	12	14
408012/L	1000	80	M12	0,118	100	96	70	26	19	80	12	14
408016	1000	80	M16	0,204	100	96	70	26	19	80	16	17
408020	1000	80	M20	0,287	130	126	100	28	19	80	20	16
408021	1000	80	M20	0,429	200	196	170	26	19	80	20	16
