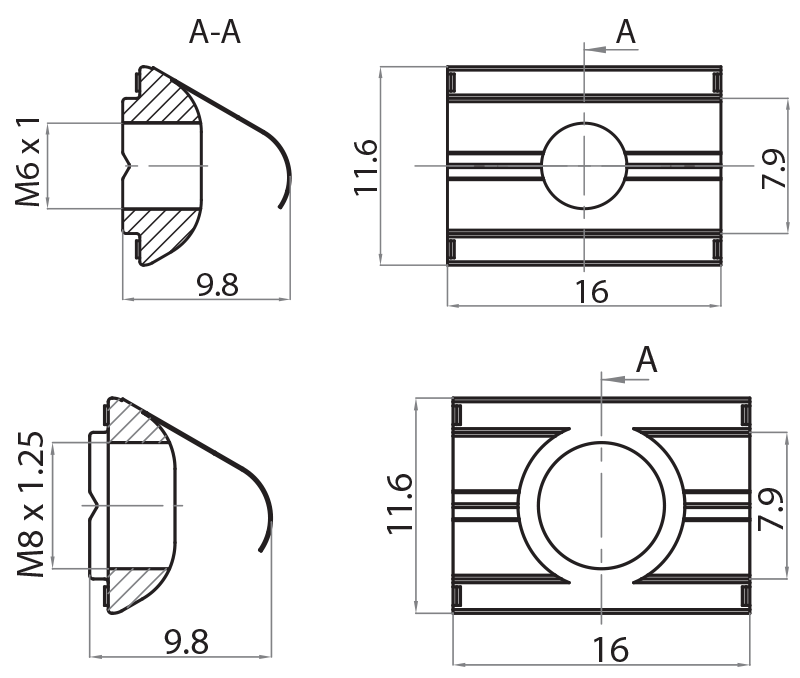

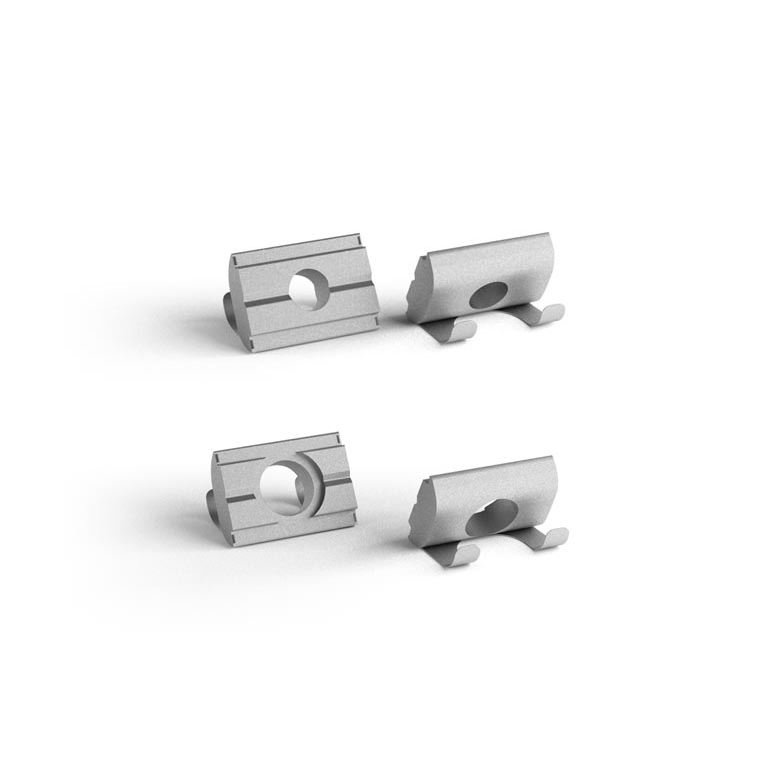

Nuts with spring leaf for profile 103234

cod. 210609

Nuts with spring leaf for profile 103234


Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Function Nut type Weight (Kg)
210609 zinc-coated steel insertable into slots also after assembly M6 0,005
210809 zinc-coated steel insertable into slots also after assembly M8 0,004
210609 Nut M6 with spring leaf for profile 103234 210609 0.00€
210809 Nut M8 with spring leaf for profile 103234 210809 0.00€
