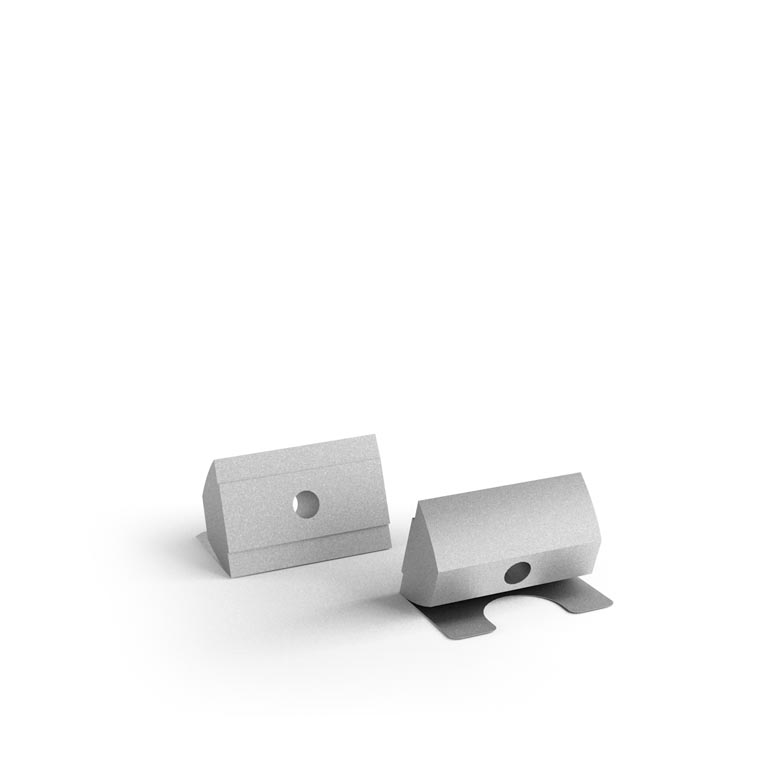

Nuts with spring leaf for 8 mm groove (series 40)

cod. 210462

Nuts with spring leaf for 8 mm groove (series 40)


Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

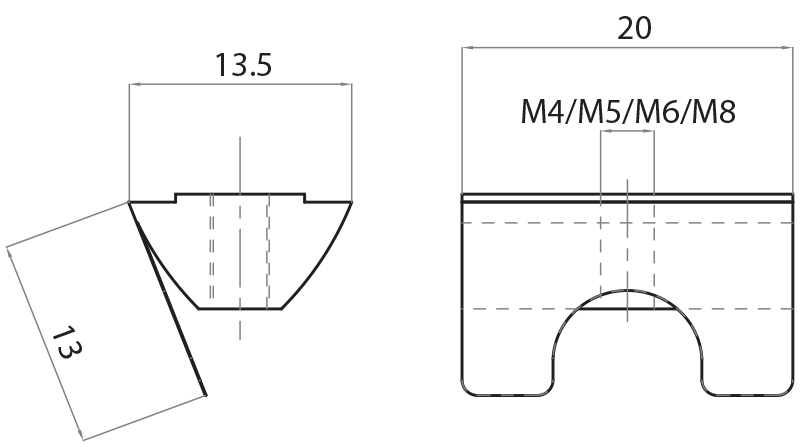

Art. No. Material Groove type Function Nut type Weight (Kg)
210442 zinc-coated steel 8 mm groove (series 40) insertable into slots also after assembly M4 0,005
210452 zinc-coated steel 8 mm groove (series 40) insertable into slots also after assembly M5 0,005
210462 zinc-coated steel 8 mm groove (series 40) insertable into slots also after assembly M6 0,005
210482 zinc-coated steel 8 mm groove (series 40) insertable into slots also after assembly M8 0,005
210442 Nut M4 with spring leaf 210442 0.00€
210452 Nut M5 with spring leaf 210452 0.00€
210462 Nut M6 with spring leaf 210462 0.00€
210482 Nut M8 with spring leaf 210482 0.00€
