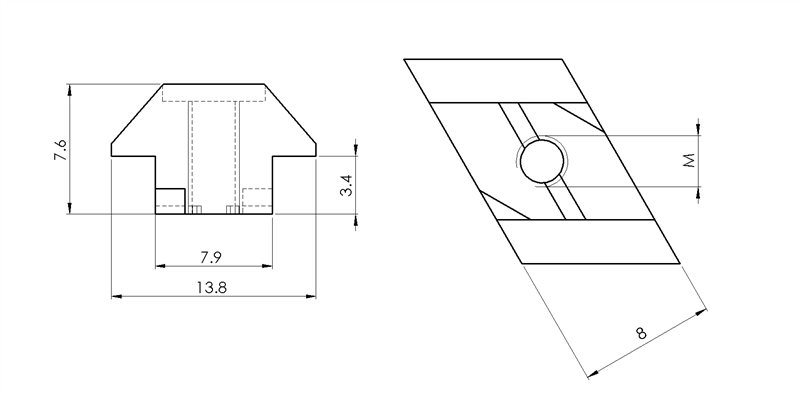

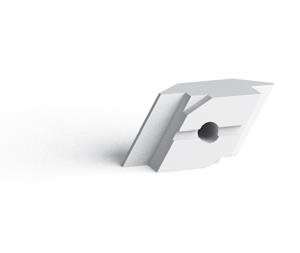

Hammer nut M4 for 8 mm groove, 40-45 series

cod. 210423

Hammer nut M4 for 8 mm groove, 40-45 series


Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Function Nut type Weight (Kg)
210323 zinc-coated steel insertable into slots also after assembly M3 0,008
210423 zinc-coated steel insertable into slots also after assembly M4 0,008
210523 zinc-coated steel insertable into slots also after assembly M5 0,007
210623 zinc-coated steel insertable into slots also after assembly M6 0,007
210323 Hammer nut M3 for 8 mm groove, 40-45 series 210323 0.00€
210423 Hammer nut M4 for 8 mm groove, 40-45 series 210423 0.00€
210523 Hammer nut M5 for 8 mm groove, 40-45 series 210523 0.00€
210623 Hammer nut M6 for 8 mm groove, 40-45 series 210623 0.00€
