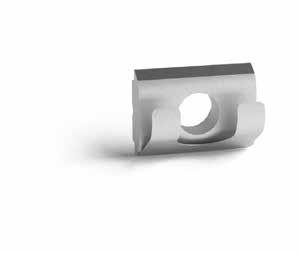

Nuts with elastic leaf for 10 mm groove

cod. 210406

Nuts with elastic leaf for 10 mm groove


Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

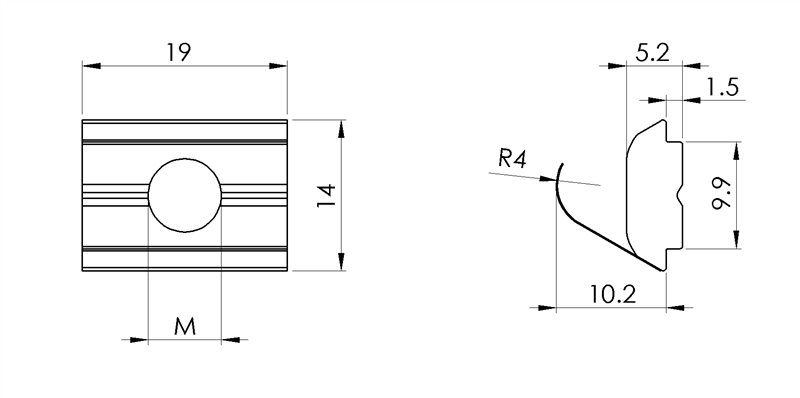

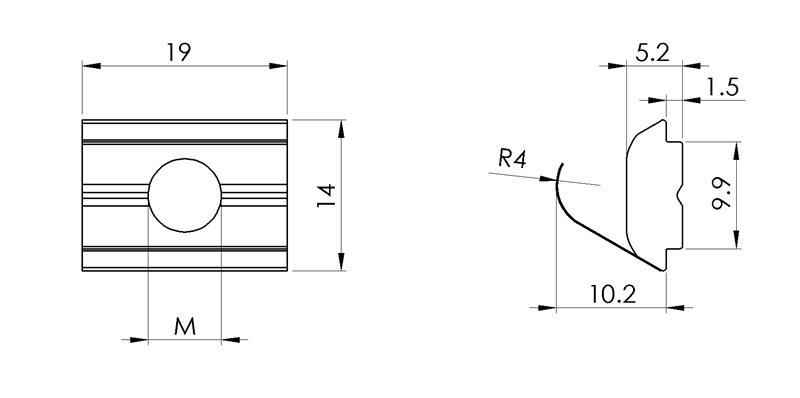

Art. No. Material Groove type M Function Weight (Kg)
210406 Zinc-coated steel Groove 10 mm (series 45) M4 Insertable into slots also after assembly 0,007
210506 Zinc-coated steel Groove 10 mm (series 45) M5 Insertable into slots also after assembly 0,007
210606 Zinc-coated steel Groove 10 mm (series 45) M6 Insertable into slots also after assembly 0,007
210806 Zinc-coated steel Groove 10 mm (series 45) M8 Insertable into slots also after assembly 0,007
210406 M4 Nut with elastic leaf for 10 mm groove 210406 0.00€
210506 M5 Nut with elastic leaf for 10 mm groove 210506 0.00€
210606 M6 Nut with elastic leaf for 10 mm groove 210606 0.00€
210806 M8 Nut with elastic leaf for 10 mm groove 210806 0.00€
