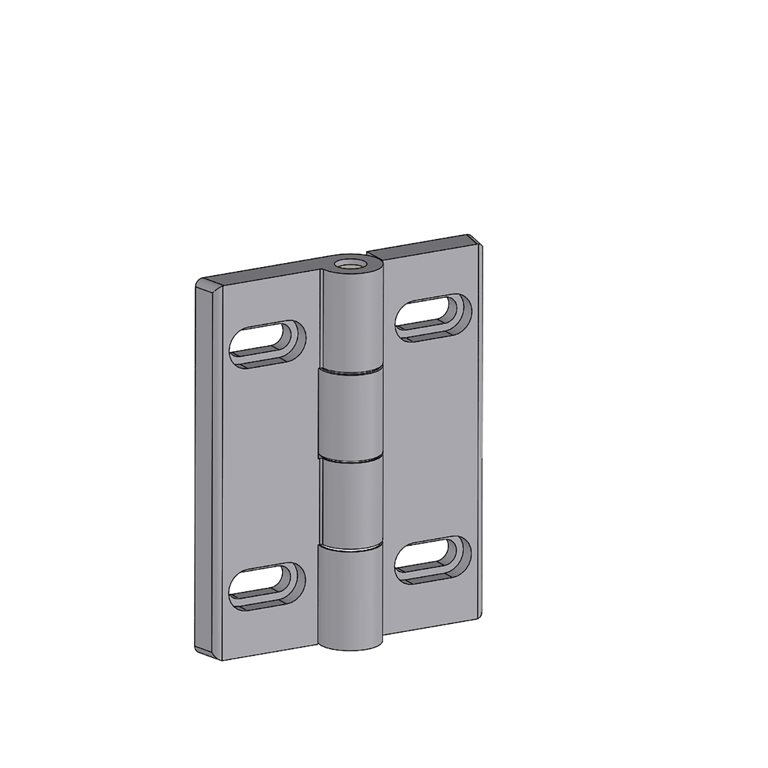

Aluminium hinge series 40 + series 45

cod. 614045

Aluminium hinge series 40 + series 45

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Screws Profile type Weight (Kg)
614045 anodized aluminium, stainless steel pin M6x20 40x40 and 45x45 0,150
Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
