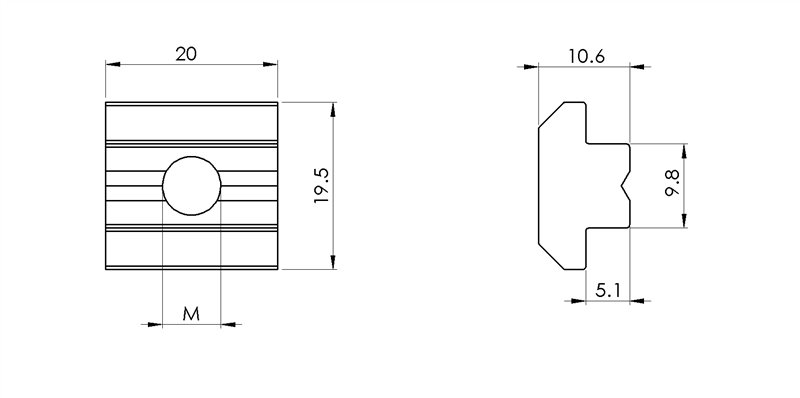

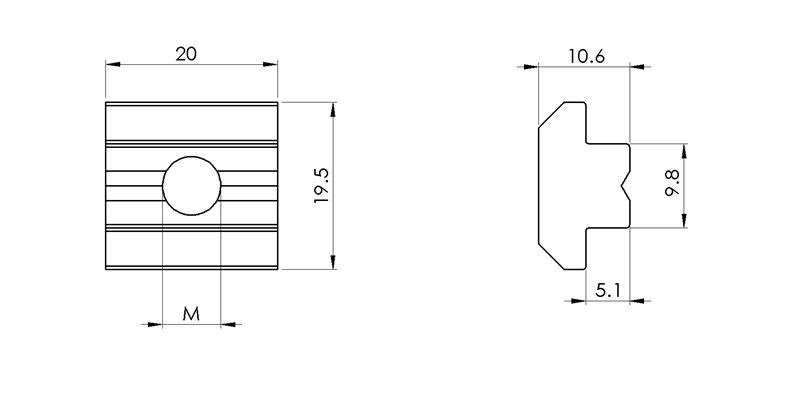

T-slot nuts for 10 mm groove

cod. 210411

T-slot nuts for 10 mm groove


Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Groove type M Function Weight (Kg)
210411 Zinc-coated steel Groove 10 mm (series 45) M4 Insertable into slots also after assembly 0,008
210511 Zinc-coated steel Groove 10 mm (series 45) M5 Insertable into slots also after assembly 0,008
210611 Zinc-coated steel Groove 10 mm (series 45) M6 Insertable into slots also after assembly 0,008
210811 Zinc-coated steel Groove 10 mm (series 45) M8 Insertable into slots also after assembly 0,008
210411 M4 T-slot nut for 10 mm groove 210411 0.00€
210511 M5 T-slot nut for 10 mm groove 210511 0.00€
210611 M6 T-slot nut for 10 mm groove 210611 0.00€
210811 M8 T-slot nut for 10 mm groove 210811 0.00€
