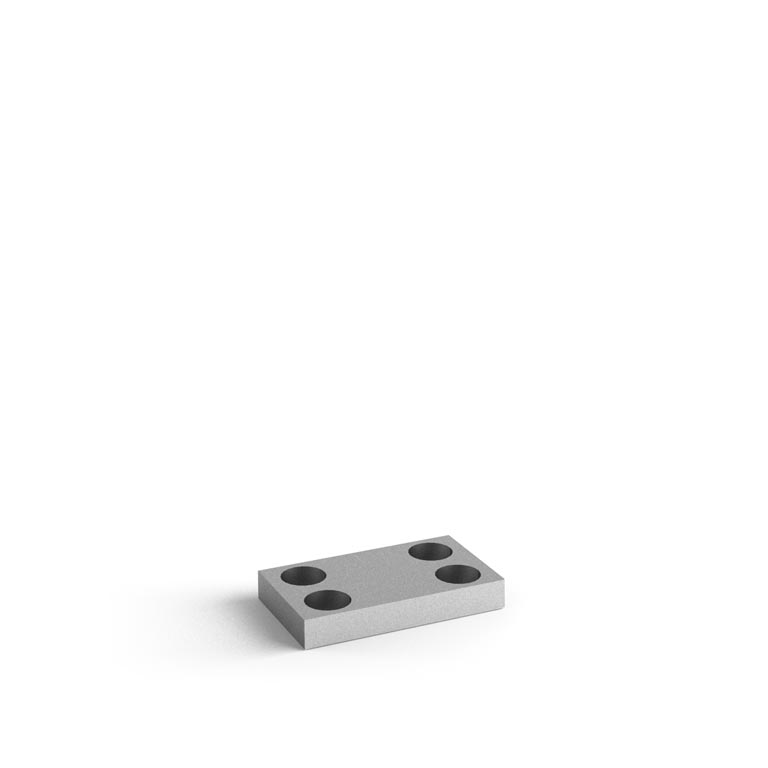

Connection and fastening plate 32x32 + 32x32 and 32x32 + 18,5x32

cod. 300018

Connection and fastening plate for profiles 32x32 + 32x32 and 32x32 + 18,5x32

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Profile type Function Weight (Kg)
300018 sandblasted aluminium 32x32 + 32x32 and 32x32 + 18,5x32 suitable for fixing more protection panels 0,064
Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
