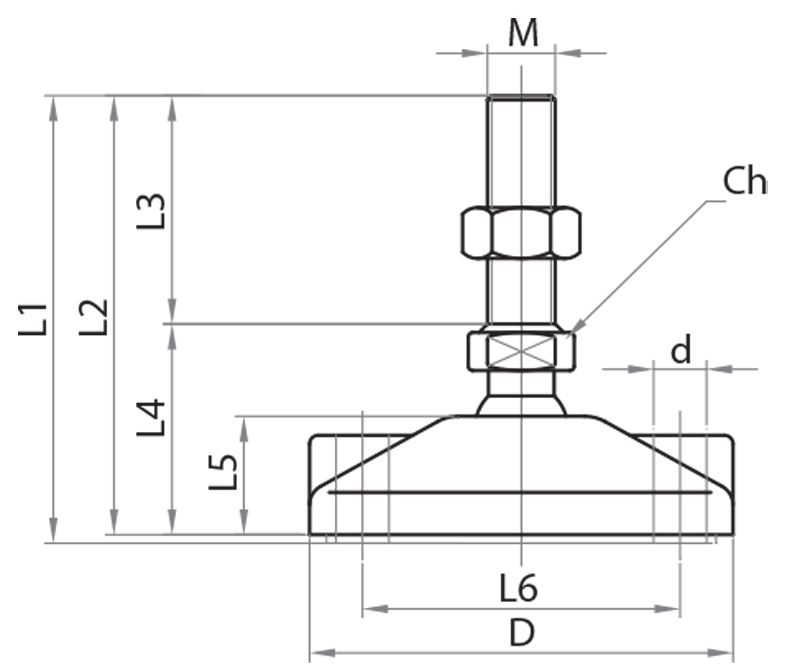

| Art. No. | Max Load (Kg) | Base diameter (mm) | Stem diameter | Weight (Kg) | L1 | L2 | L3 | L4 | L5 | L6 | D | M | Ch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 419916 | 1200 | 100 | M16 | 0,348 | 114 | 110 | 63 | 47 | 28 | 73,6 | 100 | 16 | 24 |
| 419916/L | 1200 | 100 | M16 | 0,451 | 187 | 183 | 136 | 47 | 28 | 73,6 | 100 | 16 | 24 |

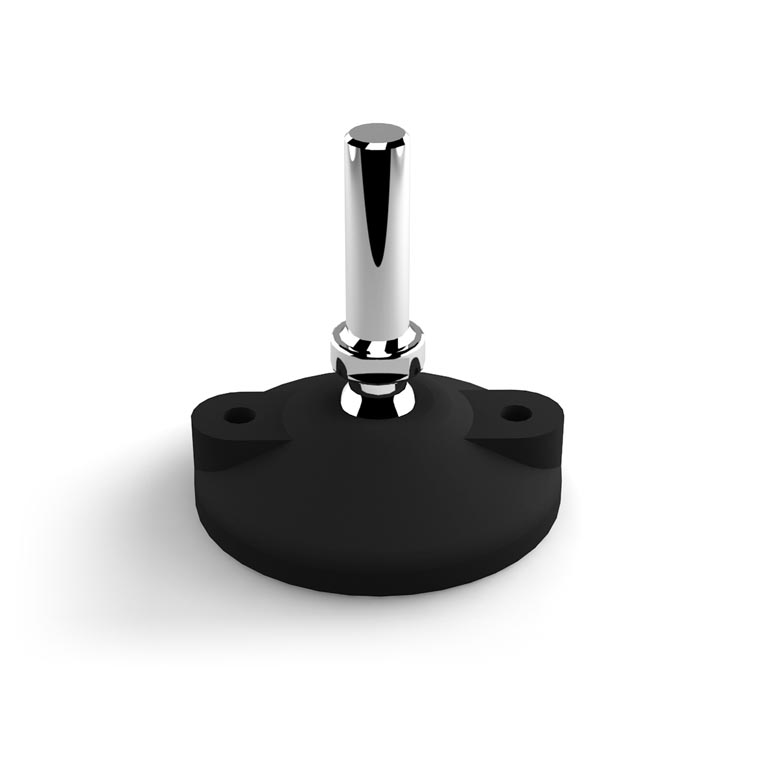

| 419916 | Anti-vibration fixable articulated foot Ø100 M16 H=114mm | 419916 | 0.00€ | |
| 419916L | Anti-vibration fixable articulated foot Ø100 M16 H=187mm | 419916L | 0.00€ |
