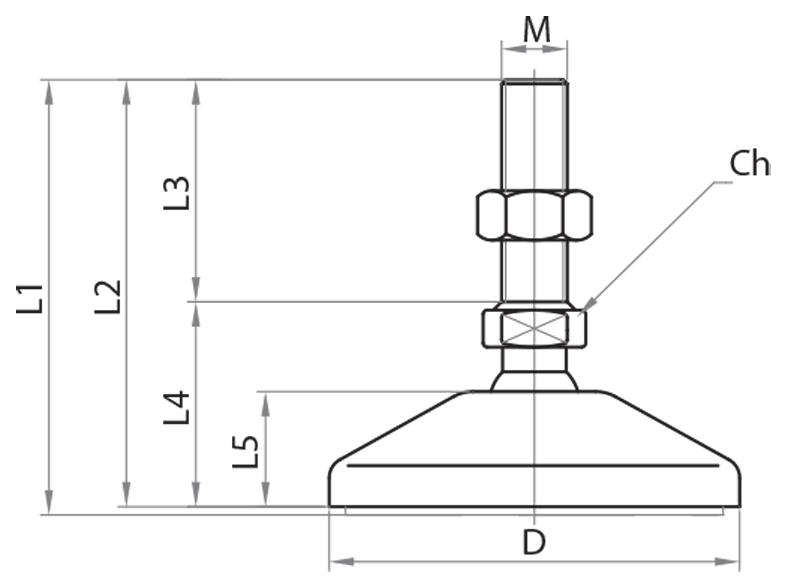

| Art. No. | Max Load (Kg) | Base diameter (mm) | Stem diameter | Weight (Kg) | L1 | L2 | L3 | L4 | L5 | D | M | Ch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 409916 | 1200 | 100 | M16 | 0,328 | 113 | 109 | 63 | 46 | 28 | 100 | 16 | 27 |
| 409916/L | 1200 | 100 | M16 | 0,431 | 186 | 182 | 136 | 46 | 28 | 100 | 16 | 27 |

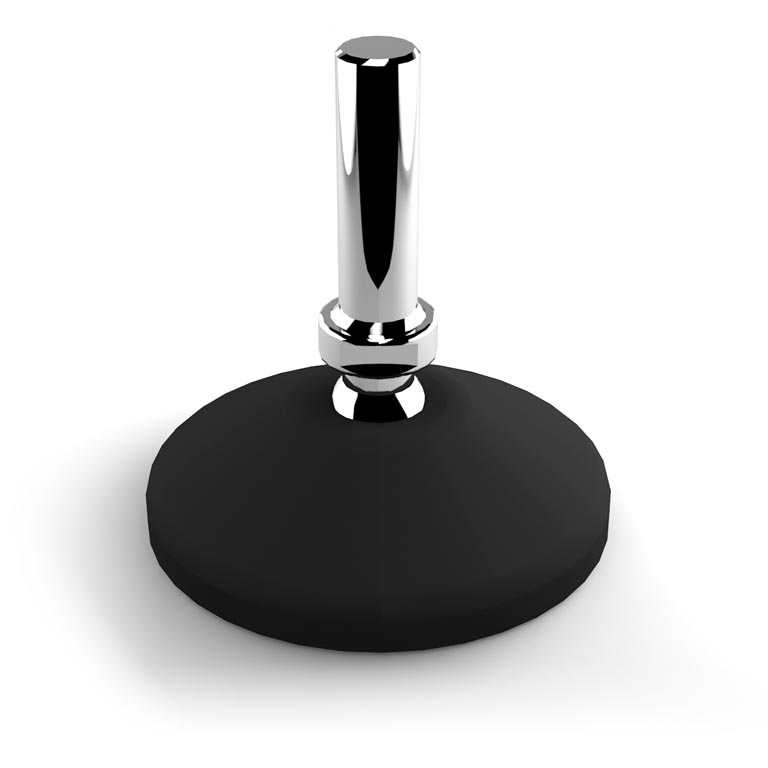

| 409916 | Articulated foot Ø100 M16 H=113mm | 409916 | 0.00€ | |
| 409916L | Articulated foot Ø100 M16 H=186mm | 409916L | 0.00€ |
