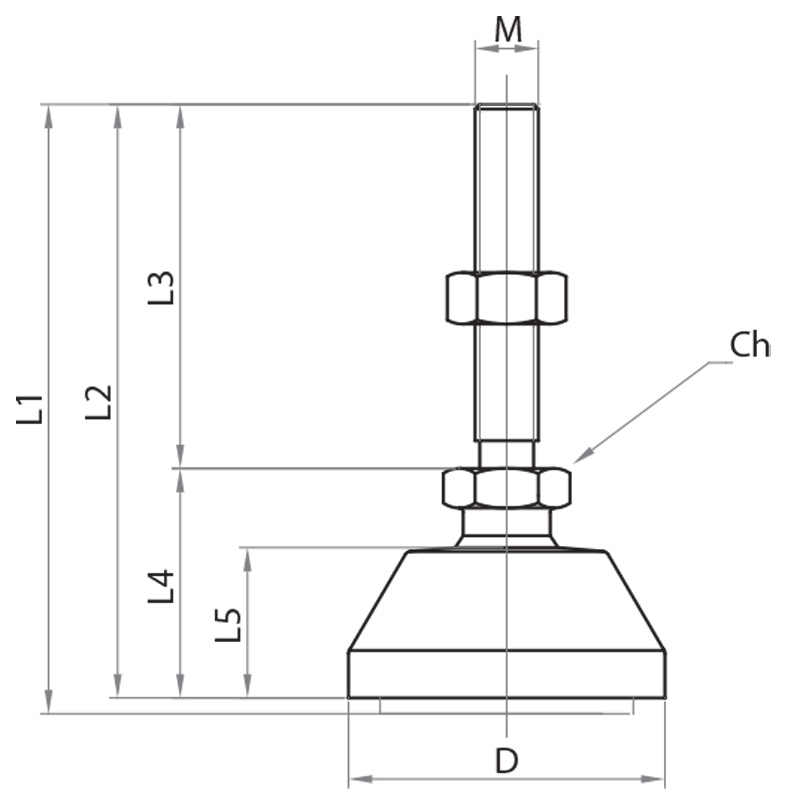

| Produkt No. | Maximale Belastung (Kg) | Durchmesser der Basis (mm) | Durchmesser des Stiels | Gewicht (Kg) | L1 | L2 | L3 | L4 | L5 | D | M | Ch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 404008 | 900 | 40 | M8 | 0,058 | 75 | 72 | 42 | 30 | 19 | 40 | 8 | 14 |
| 404010 | 900 | 40 | M10 | 0,072 | 75 | 72 | 42 | 30 | 19 | 40 | 10 | 14 |
| 404010/L | 900 | 40 | M10 | 0,074 | 102 | 100 | 70 | 30 | 19 | 40 | 10 | 14 |
| 404012 | 900 | 40 | M12 | 0,070 | 78,5 | 75 | 45 | 30 | 19 | 40 | 12 | 14 |
| 404012/L | 900 | 40 | M12 | 0,090 | 102 | 100 | 70 | 30 | 19 | 40 | 12 | 14 |
| 404016 | 900 | 40 | M16 | 0,162 | 102 | 100 | 70 | 30 | 19 | 40 | 16 | 17 |
| 404008 | Gelenkfuß Ø40 M8 H=75mm | 404008 | 0.00€ | |
| 404010 | Gelenkfuß Ø40 M10 H=75mm | 404010 | 0.00€ | |
| 404012 | Gelenkfuß Ø40 M12 H=75mm | 404012 | 0.00€ | |
| 404016 | Gelenkfuß Ø40 M16 H=102mm | 404016 | 0.00€ | |
| 404010L | Gelenkfuß Ø40 M10 H=102mm | 404010L | 0.00€ | |
| 404012L | Gelenkfuß Ø40 M12 H=102mm | 404012L | 0.00€ |
