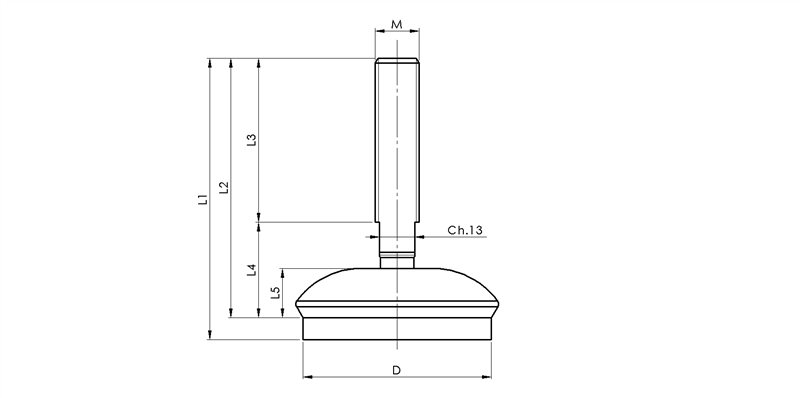

| Produkt No. | Max Belastung (Kg) | Durchmesser der Basis (mm) | Durchmesser der Basis | Gewicht (Kg) | L1 | L2 | L3 | L4 | L5 | D | M |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CS740751610 | 1900 | 75 | M16 | 0,266 | 103 | 95 | 68 | 26,5 | 15 | 75 | 16 |
| CS740751617 | 1900 | 75 | M16 | 0,325 | 168 | 160 | 133 | 26,5 | 15 | 75 | 16 |
| CS740751625 | 1900 | 75 | M16 | 0,422 | 248 | 240 | 213 | 26,5 | 15 | 75 | 16 |
| CS740751610 | Edelstahl-Gelenkfüße Ø75 M16 H=103mm | CS740751610 | 0.00€ | |
| CS740751617 | Edelstahl-Gelenkfüße Ø75 M16 H=168mm | CS740751617 | 0.00€ | |
| CS740751625 | Edelstahl-Gelenkfüße Ø75 M16 H=248mm | CS740751625 | 0.00€ |
