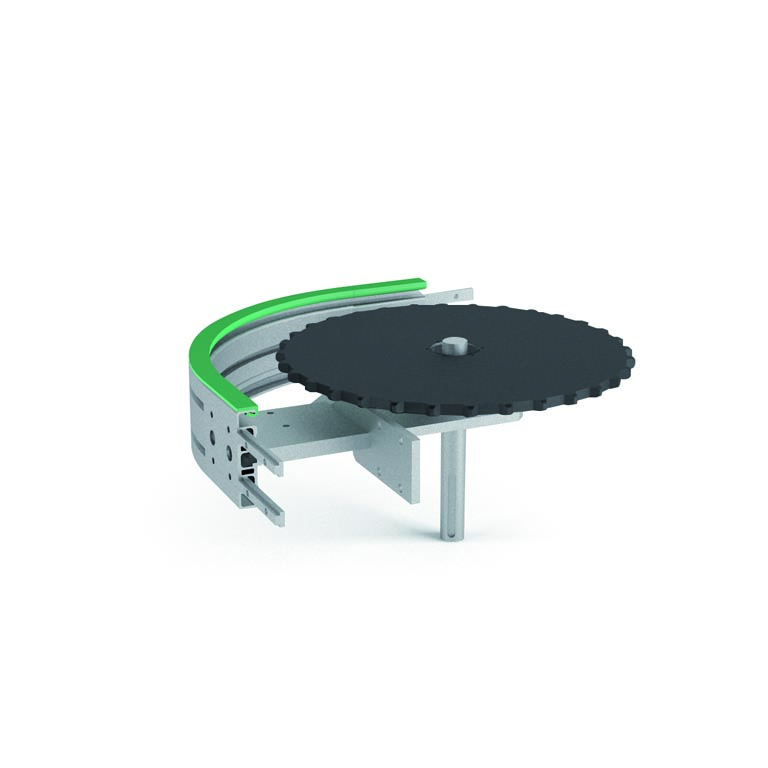

One way 90° pulling curve average radius 200 mm

cod. AT132127-90

One way 90° pulling curve average radius 200 mm

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

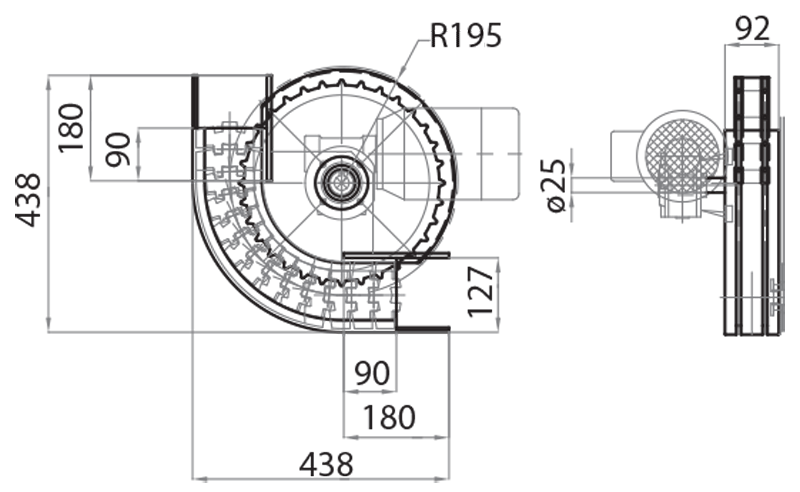

Art. No. Channel dimension (mm) Chain width (mm) Medium radius (mm) Angle
AT132127-90 127 114,3 200 90°
