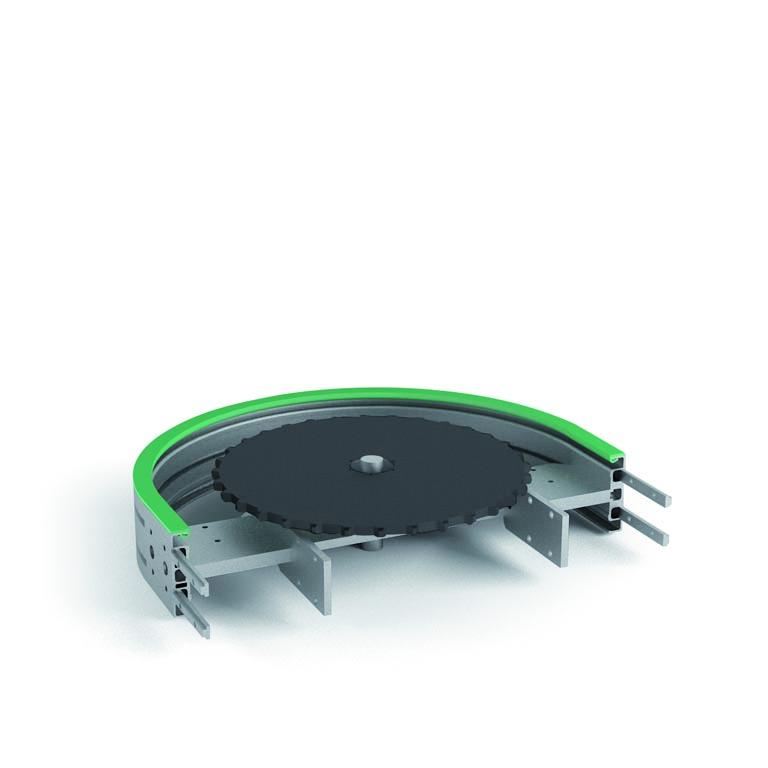

One way 180° idle curve average radius 200 mm

cod. AR132127/180

One way 180° idle curve average radius 200 mm

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

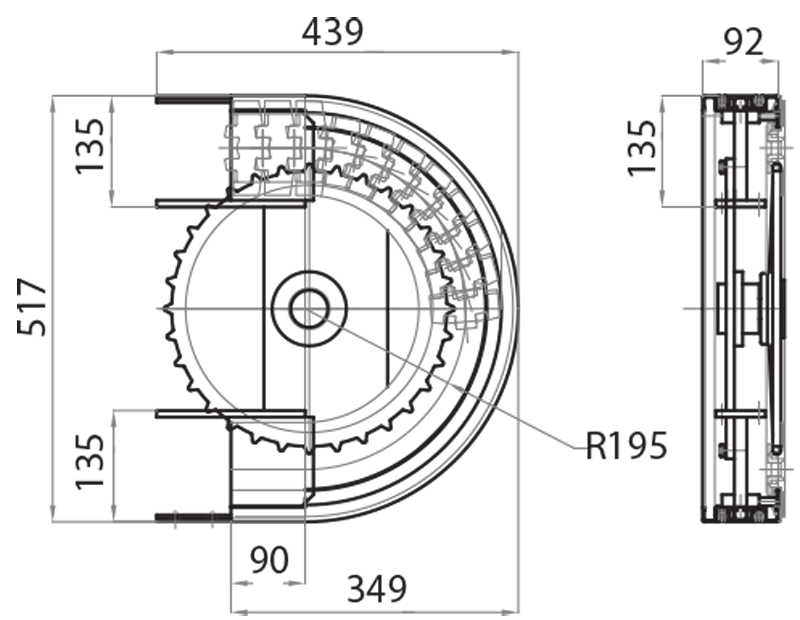

Art. No. Channel dimension (mm) Chain width (mm) Medium radius (mm) Angle
AR132127/180 127 114,3 200 180°
AR100127/180* 127 114,3 200 180°
* Tire without teeth
