Gas dumpers for counterbalanced doors

cod. 700014

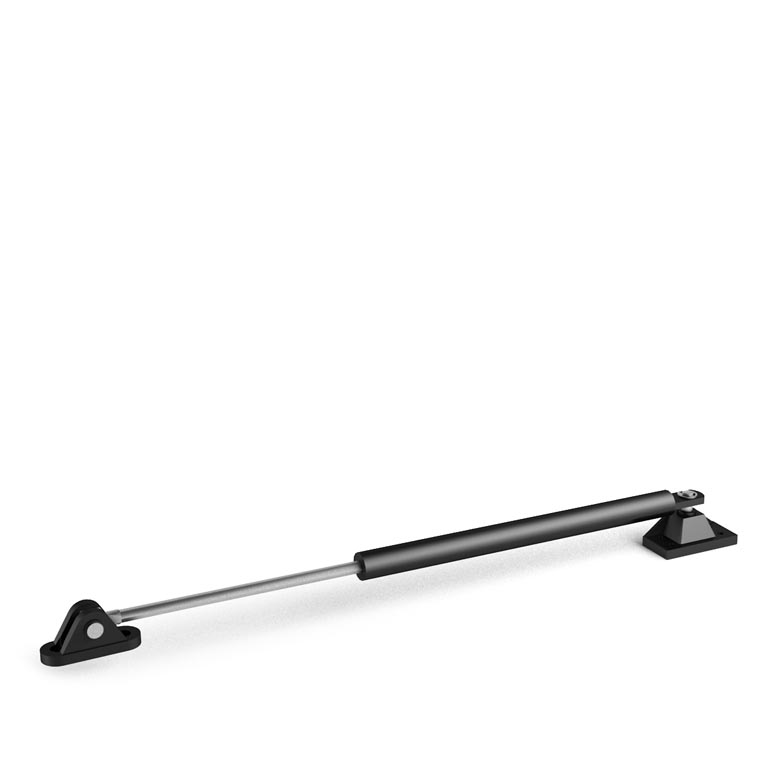

Gas dumpers for counterbalanced doors


Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

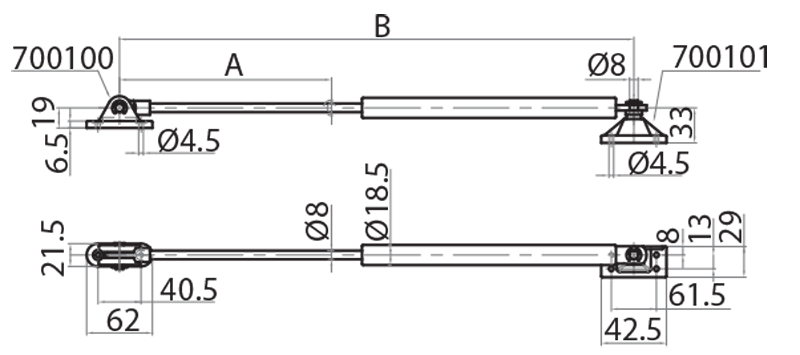

Art. No. Material Assembly set Push force (N) A (mm) B (mm) Weight (Kg)
700011-10 aluminium and steel complete with fixing supports 100 200 483 0,345
700011-40 aluminium and steel complete with fixing supports 400 200 483 0,345
700011 aluminium and steel complete with fixing supports 300 200 483 0,345
700011-50 aluminium and steel complete with fixing supports 500 200 483 0,365
700012 aluminium and steel complete with fixing supports 200 95 257 0,220
700014 aluminium and steel complete with fixing supports 200 200 485 0,345
700100 - 700101 front and rear fixing supports
700011-10 Gas dumper 100N 700011 0.00€
700011-40 Gas dumper 400N 700012 0.00€
700011 Gas dumper 300N 700014 0.00€
700011-50 Gas dumper 500N 700100 0.00€
700012 Gas dumper 200N stroke 95 mm 700101 0.00€
700014 Gas dumper 200N stroke 200 mm 700011-10 0.00€
700100 Front fixing support for gas dumper 700011-40 0.00€
700101 Rear fixing support for gas dumper 700011-50 0.00€
