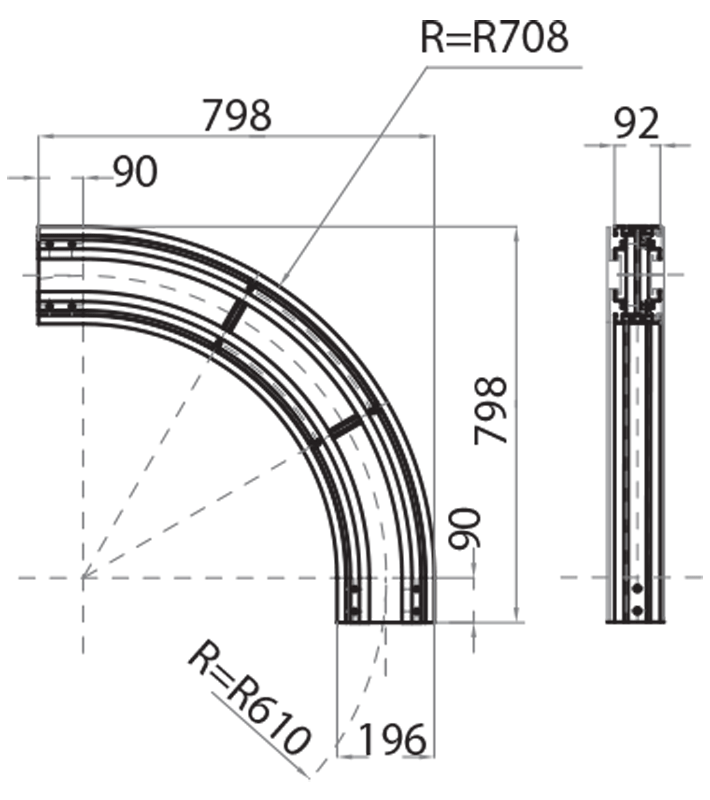

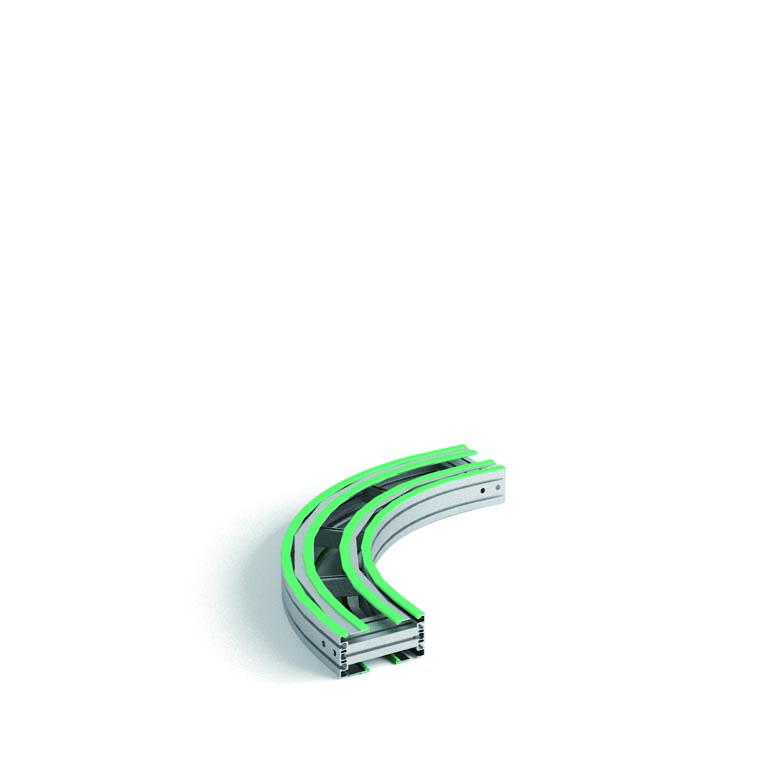

Return 90° sliding curve average radius 610 mm

cod. AC661196

Return 90° sliding curve average radius 610 mm

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Channel dimension (mm) Chain width (mm) Medium radius (mm) Angle
AC661196 196 190,5 610 90°
Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
