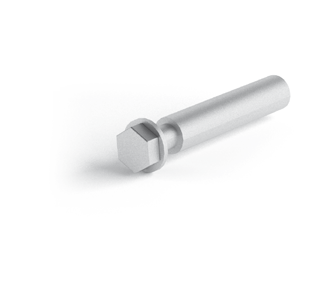

Guide support rods

cod. 731205

Guide support rods


Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

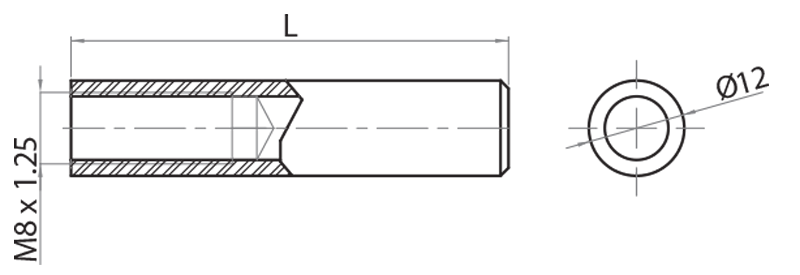

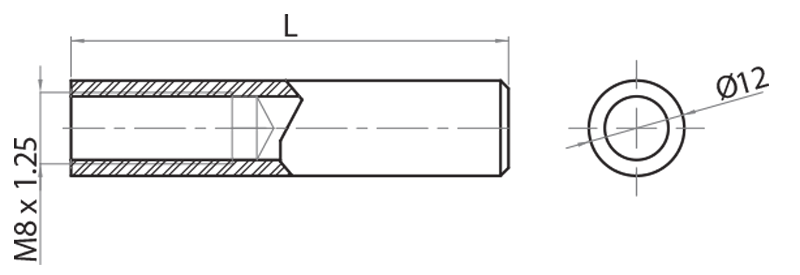

Art. No. Material Assembly set L (mm) Weight (Kg)
731205 zinc-coated iron complete with hexagonal screw M8x16 with washer 55 0,038
731211 zinc-coated iron complete with hexagonal screw M8x16 with washer 110 0,101
731216 zinc-coated iron complete with hexagonal screw M8x16 with washer 160 0,145
731222 zinc-coated iron complete with hexagonal screw M8x16 with washer 220 0,186
731235 zinc-coated iron complete with hexagonal screw M8x16 with washer 350 0,240
731205 Guide support rod L= 55 mm 731205 0.00€
731211 Guide support rod L= 110 mm 731211 0.00€
731216 Guide support rod L= 160 mm 731216 0.00€
731222 Guide support rod L= 220 mm 731222 0.00€
731235 Guide support rod L= 350 mm 731235 0.00€
