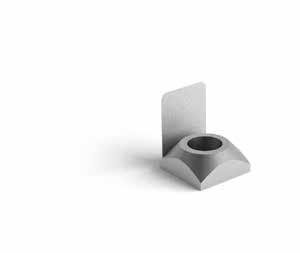

Nuts for 6 mm groove

cod. 210642

Nuts for 6 mm groove


Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Function Nut type Weight (Kg)
210642 Zinc-coated steel Insertable into slots even after assembly M4 with spring 0,0010
210652 Zinc-coated steel Insertable into slots even after assembly M5 with spring 0,0015
210662 Zinc-coated steel Insertable into slots even after assembly M6 with spring 0,0020
210640 Zinc-coated steel Insertable into slots even after assembly M4 without spring 0,0010
210650 Zinc-coated steel Insertable into slots even after assembly M5 without spring 0,0010
210660 Zinc-coated steel Insertable into slots even after assembly M6 without spring 0,0015
210642 Nut M4 with spring for 6 mm groove 210642 0.00€
210652 Nut M5 with spring for 6 mm groove 210652 0.00€
210662 Nut M6 with spring for 6 mm groove 210662 0.00€
210640 Nut M4 without spring for 6 mm groove 210640 0.00€
210650 Nut M5 without spring for 6 mm groove 210650 0.00€
210660 Nut M6 without spring for 6 mm groove 210660 0.00€
